Pillow bag
product up to 550 × 330 × 150 mm (FP700S)
The flow pack format: one longitudinal seal and two cross seals.
Flowpack packaging machines
FPS Flowpack packaging machine
The FPS Flowpack packaging machine is the high-end servo version of the FP Flowpack: three independent servo motors drive the pushers, the rollers and the jaws, for more precision and flexibility, at up to 80 bags per minute in pillow bags. The standard range goes from the FP200S to the FP1000S (the number is the reel width in millimetres) and we build any other size to order; the FP700S, for example, takes products up to 550 × 330 × 150 mm. With the no product, no bag function, the bag is not opened when there is no product.
- bags/min max.
- 80
- independent servo motors
- 3
- reel width (standard range)
- 200–1000 mm
- max. product height (FP700S)
- 150 mm
In action
Why choose it
Gallery
Pack formats
How it works

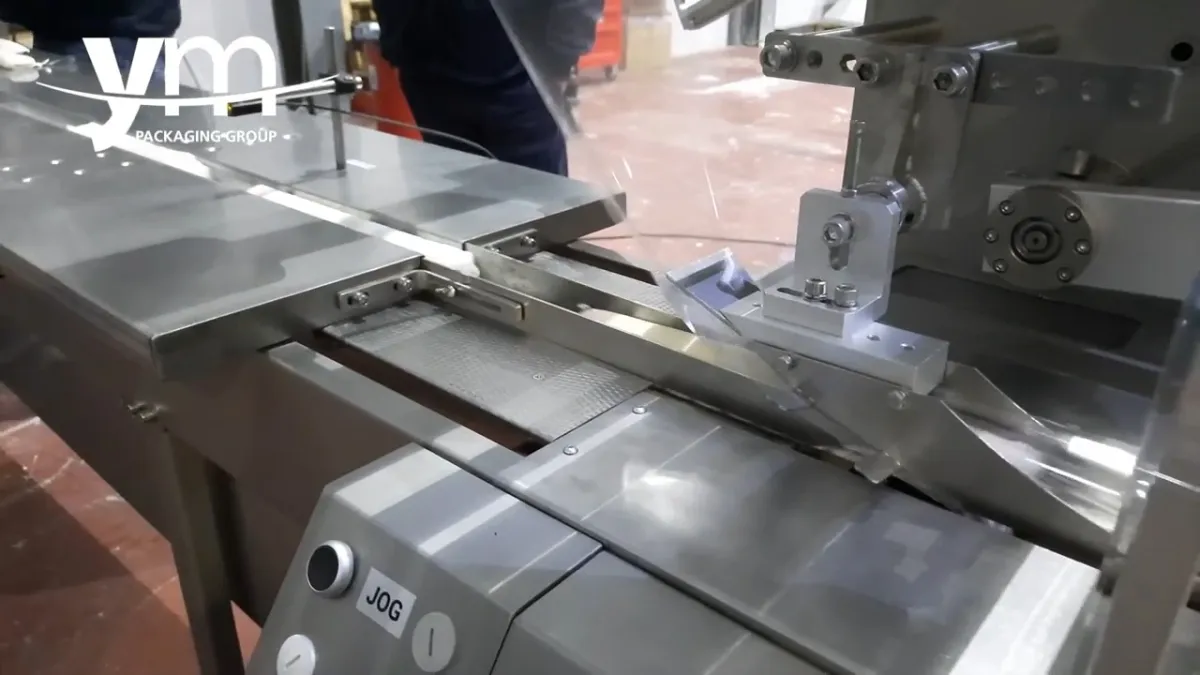

Infeed

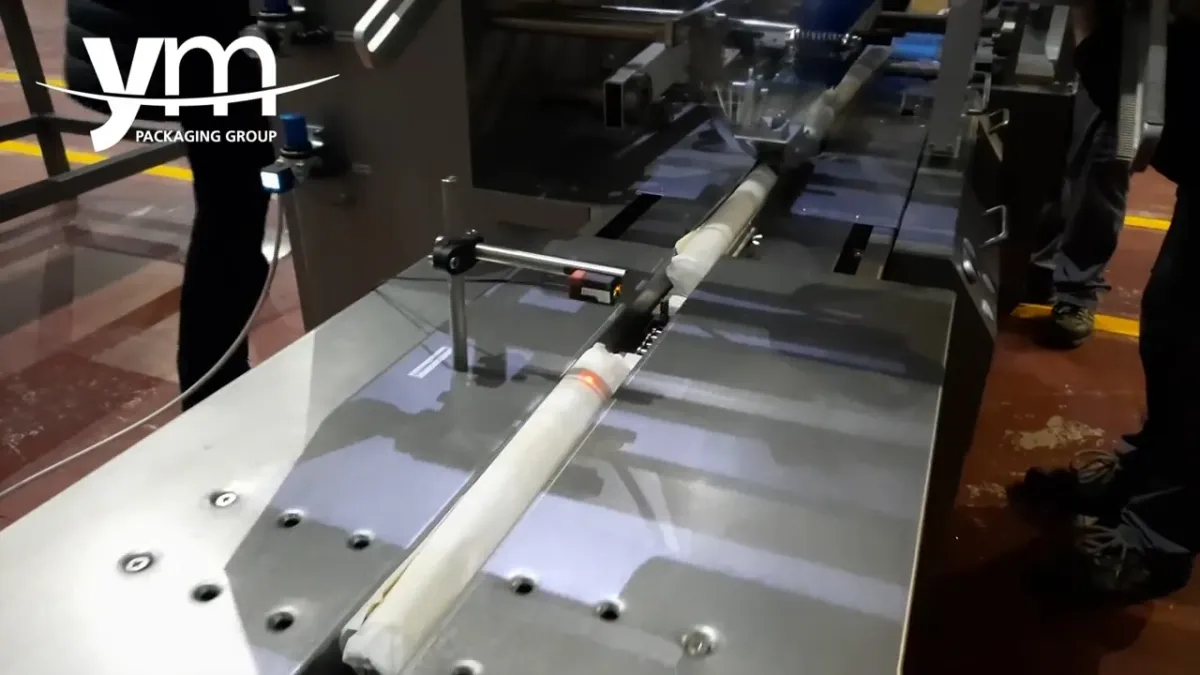

Wide pushers, driven by their own servo motor, carry the product along the 2500 mm infeed; the top support keeps it stable in transit.
Unwinding
The self-centring reel holder feeds the film and the PEC sensor reads the eye mark on printed film to position it accurately.

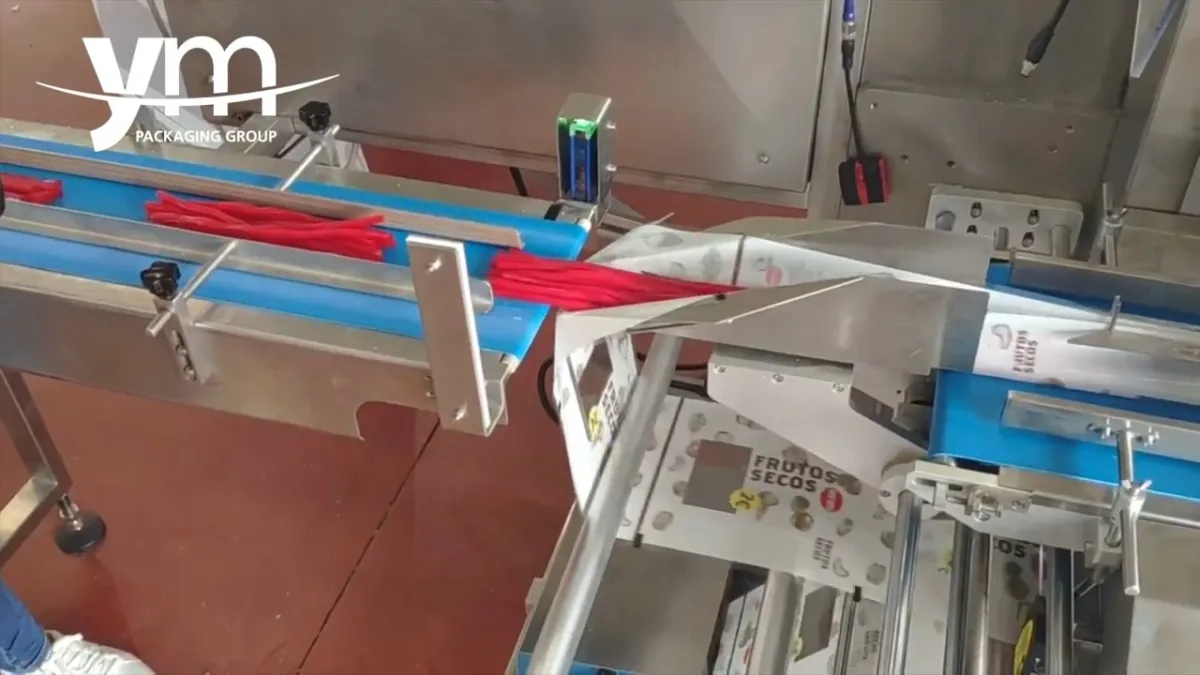

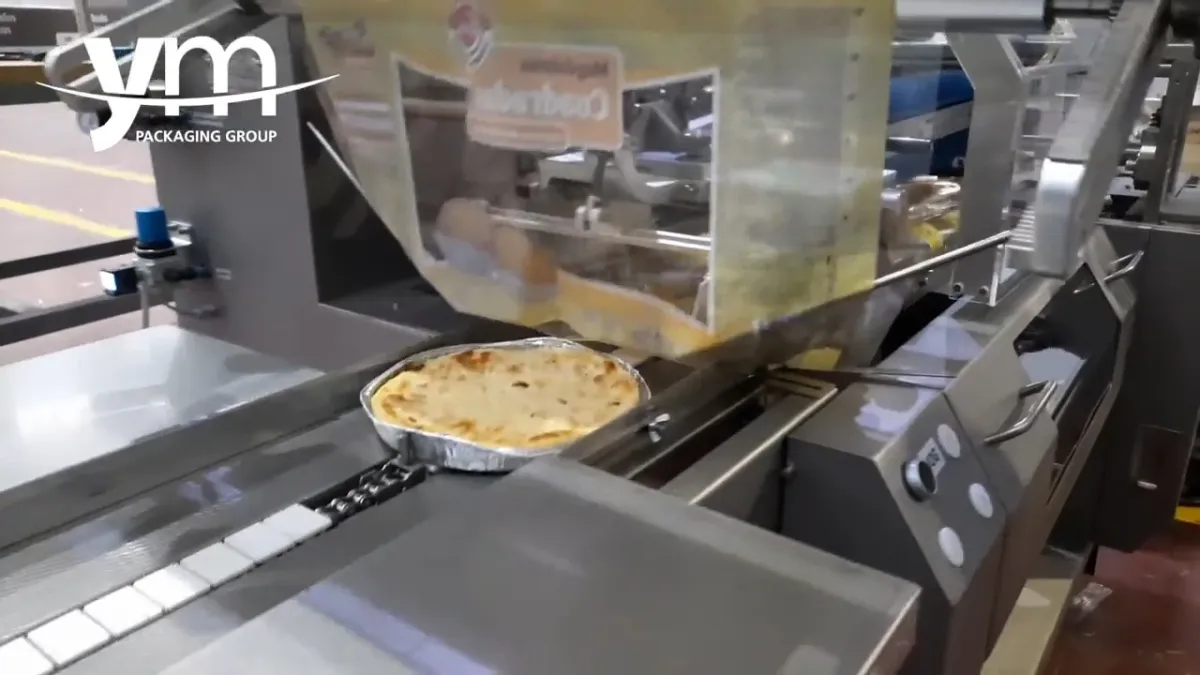

Forming
The film wraps the product and forms the tube of the pillow bag.
Longitudinal sealing
The rollers, driven by their servo motor, pull the film and seal the longitudinal fin with PID-controlled temperature.
Cross sealing and cutting
The jaws, with their own servo motor, seal with the cross-serrated jaw and the knife cuts in zigzag between products.

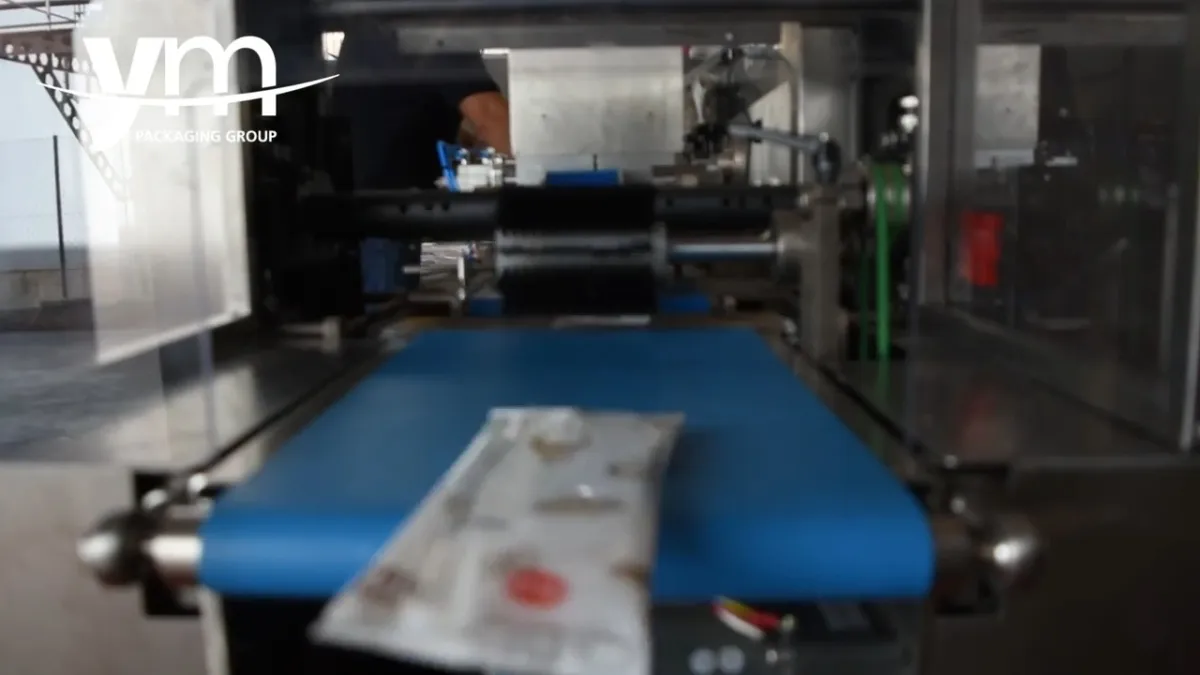

Outfeed
The built-in outfeed belt takes the finished bag to quality control and case packing.
Does it fit your product?
Tell us what you pack, in which format and at what speed. An engineer studies your case and replies with a proposal.
Or contact us directly:
- Installation and commissioning
- Operator training
- Remote support
- Spare parts and maintenance
Ask about this machine
FP200S · FP400S · FP600S · FP800S · FP1000S
Thank you for contacting us!
We have received your message and will get back to you as soon as possible.
Technical specifications
Models
| FP400S | FP600S | FP700S | |
|---|---|---|---|
| Max. reel width | 400 mm | 600 mm | 700 mm |
| Max. speed | 80 bags/min | 80 bags/min | 80 bags/min |
| Servo motors | 3: pushers · rollers · jaws | 3: pushers · rollers · jaws | 3: pushers · rollers · jaws |
| Max. product (L × W × H) | 500 × 170 × 80 mm | 500 × 280 × 80 mm | 550 × 330 × 150 mm |
| Infeed length | 2500 mm | 2500 mm | 2500 mm |
| Dimensions (drawing) | — | 4270 × 770 × 1413.8 mm | 4901 × 1015 × 1764.5 mm |
| Power supply | 220 V · 50 Hz · 20 A | 220 V · 50 Hz · 20 A | 220 V · 50 Hz · 20 A |
| Air consumption | 0.6 m³/min | 0.6 m³/min | 0.6 m³/min |
Product and pack
| Bag type | Pillow bag |
|---|---|
| Max. product | Up to 550 × 330 × 150 mm (FP700S); 500 × 280 × 80 mm (FP600S); 500 × 170 × 80 mm (FP400S) |
| Product support | Top support that keeps the product stable in transit |
Film and reel
| Reel width | 400, 600 or 700 mm depending on the model |
|---|---|
| Reel holder | Self-centring |
| Eye-mark sensor | PEC, accurate positioning of printed film |
Sealing and control
| Servo motors | 3 independent axes: pushers, rollers and jaws |
|---|---|
| Cross sealing | Cross-serrated jaw; zigzag knife; guiding brush and supporting mat |
| Temperature | PID, ±0.5 °C accuracy |
| PLC, screen and drives | Panasonic |
| Process safety | No product, no bag function |
Power and construction
| Power supply | 220 V · 50 Hz · 20 A |
|---|---|
| Air consumption | 0.6 m³/min |
| Construction | Painted steel; AISI 304 in product-contact parts |
| Handling | Castors and height-adjustable feet |

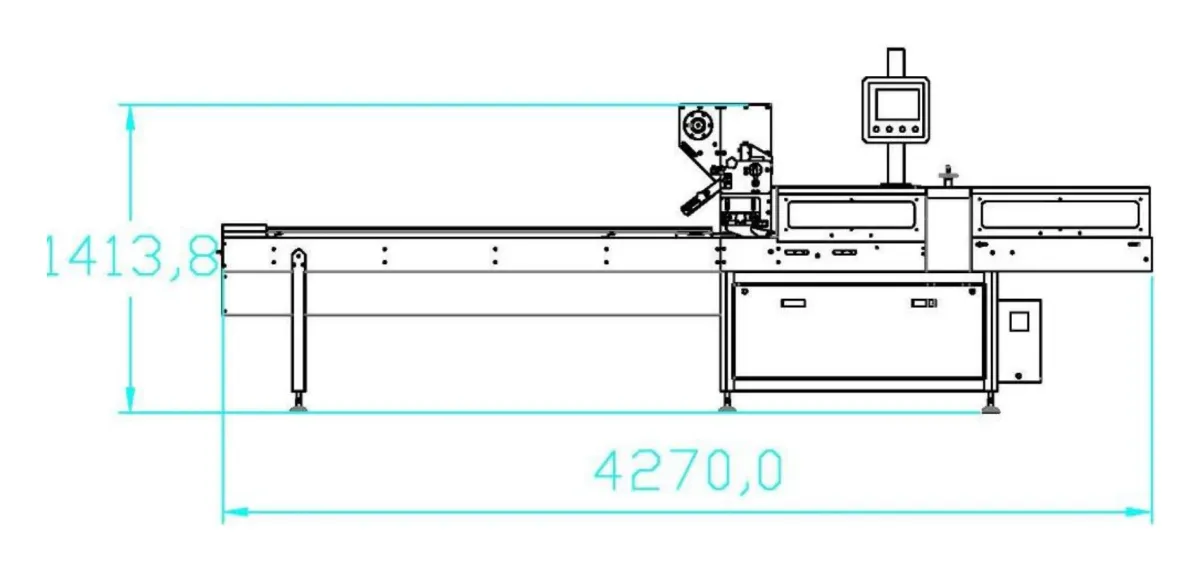

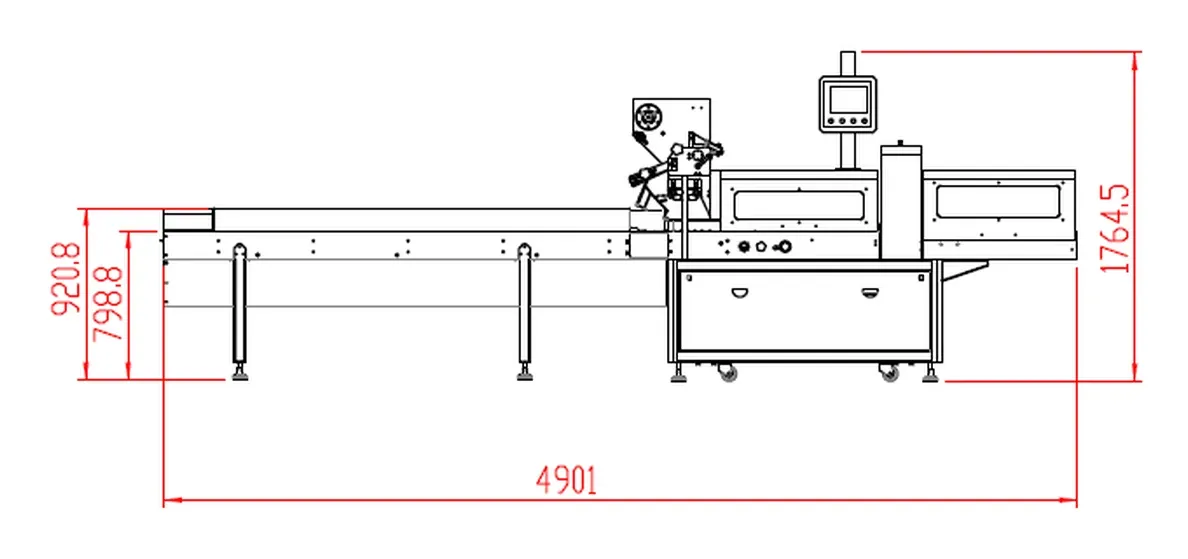

Dimensions
4270 × 1413.8 mm
4901 × 1764.5 mm
Options and extras
Products and sectors
Product types
- Bakery and pastry
- Individual solid products
- Compact product groups
Sectors
Complete line
The machine integrates with the rest of the line: dosing, quality control and end of line.
- InfeedInfeed conveyor with pushers
- This machineFP200S · FP400S · FP600S · FP800S · FP1000S
- Quality controlMetal detector
- Weight controlCheckweigher
- End of lineCase packing and palletising
Is this the right machine for your product?
Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.
Frequently asked questions
What do the three servo motors bring?
Pushers, rollers and jaws each have their own servo motor and are set separately: more precise film and product positioning, more flexible format changes and up to 80 bags per minute.
What is the difference between the FPS and the FP?
The FP drives the whole machine with a single motor and reaches 60 bags per minute. The FPS has three servo motors, Panasonic drives, a top product support and the no product, no bag function, and reaches 80.
Which model do I need?
It depends on the product: the FP400S takes up to 500 × 170 × 80 mm (400 mm reel), the FP600S up to 500 × 280 × 80 mm (600 mm) and the FP700S up to 550 × 330 × 150 mm (700 mm).
What does the no product, no bag function do?
If no product arrives, the machine does not open a bag: no film is wasted and no empty bags come out.
Is it suitable for long or delicate products?
Yes. The 2500 mm infeed takes long formats, the top support keeps the product stable in transit and the supporting mat is designed for bakery.
Can a printer or inert gas be added?
Yes. It comes prepared for a printer and an inert gas system.
Do you build other sizes?
Yes. The standard range goes from FP200S to FP1000S: the number in the model name is the reel width in millimetres (200 to 1000 mm). We also adapt the machine to any other reel or product size.
