HFX 210 CS horizontal packaging machine

The HFX 210 CS horizontal packaging machine is designed for spouted doypacks: it forms the bag from the reel, fills it, places and seals the spout over several stations and checks every seal with a camera. Continuous motion up to 180 bags per minute, with format changes made mostly by servo motors.

HFX 210 CS

bags/min
150–180
format
Spout
bag width
100–205 mm
servo adjustments
> 80%
Request informationSee it in action

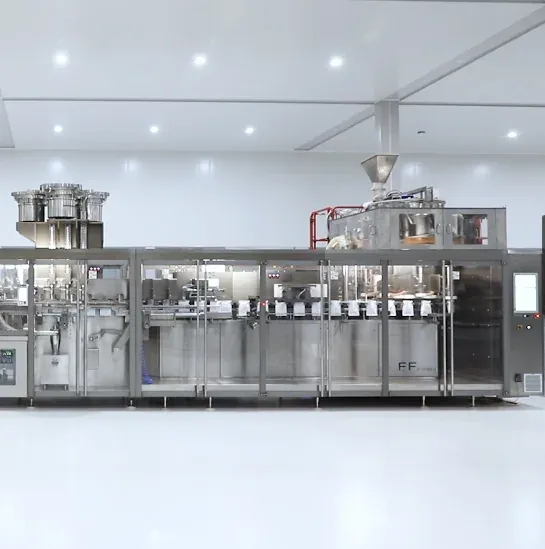

YM Packaging HFX 210 CS horizontal packaging machine for spouted doypacks, a stainless steel line with a weigher on top
HFX 210 CS

In action

The machine in production

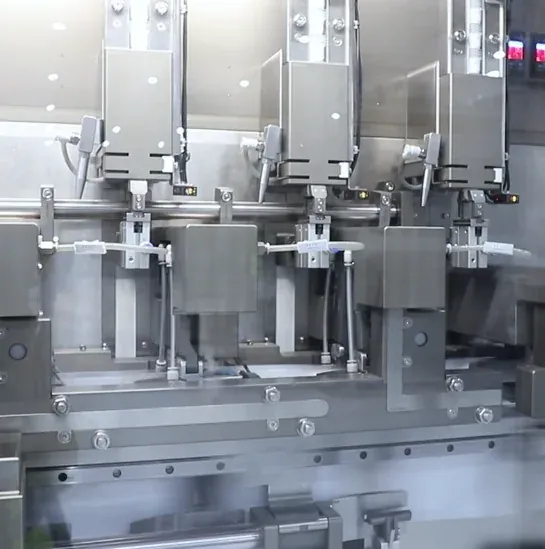

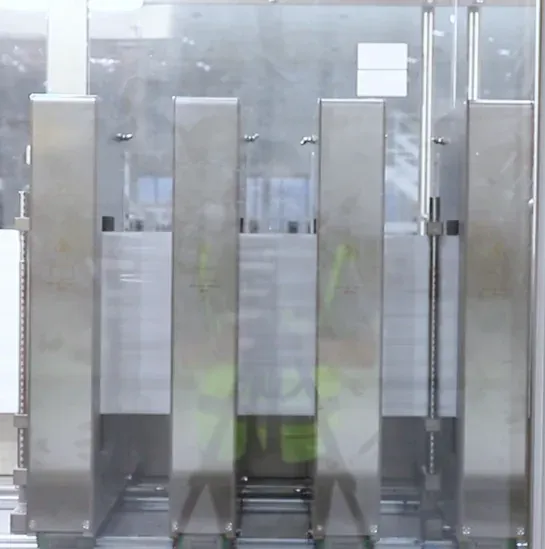

Work stations in continuous motion

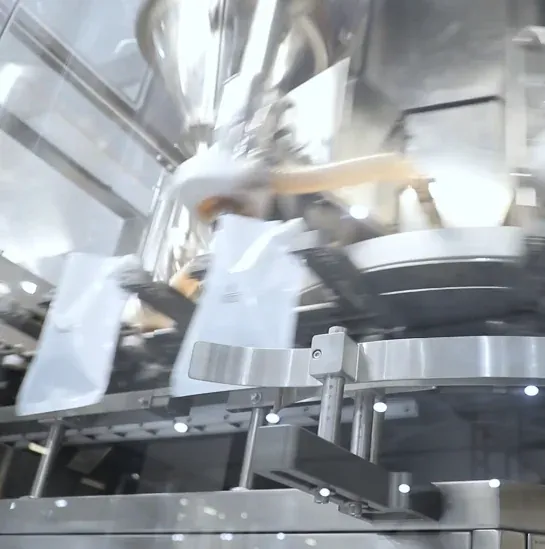

Spouted pouches on the rotary carousel
Chain transport of the pouches

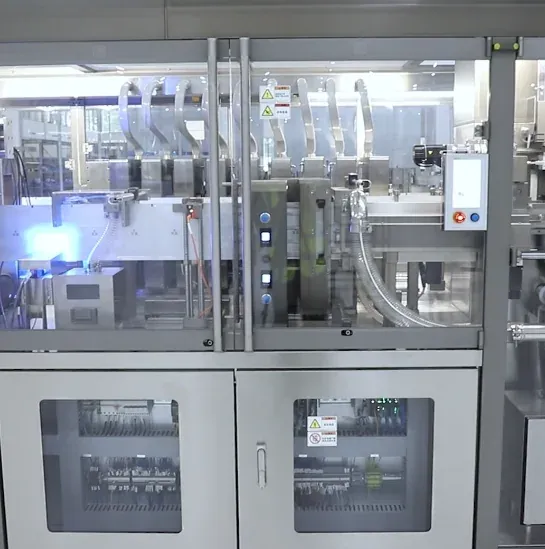

Front view in operation

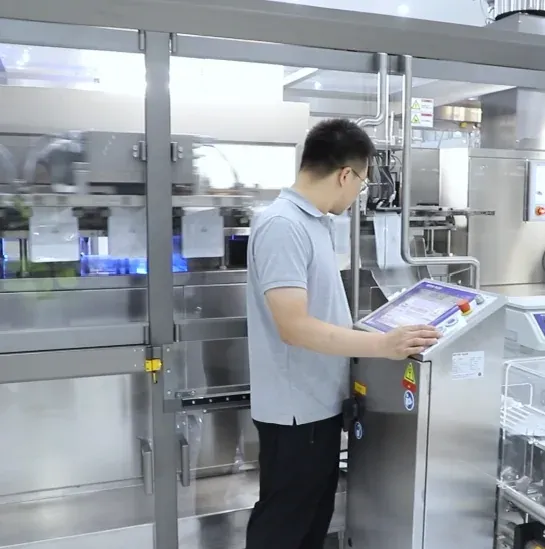

Running it from the operator panel

Why choose it

01

Up to 180 bags per minute

Steady continuous motion for long runs of spouted doypacks.

02

Self-adjusting forming

Photocells monitor bag forming and correct the module in real time so that opening is always accurate.

03

Servo-assisted changeovers

Over 80% of the format change adjustment points are moved by a servo motor: shorter, repeatable changeovers.

04

Less film

Design with no vertical edge trim: less film is wasted on each bag.

05

Multi-station spout sealing

The spout is sealed and flattened over several stations: a strong seal and a good look on the shelf.

06

In-line weight correction

Connected to the checkweigher, it corrects filling in real time and reduces overfilling.

What it can pack

  • Solids and granules
  • Liquids
  • Powder
  • Solid + liquid

Gallery

Pack formats

Doypack

Doypack

With the doypack forming module.

How it works

  1. Unwinding and splicing

    Reel with automatic splicing, so there is no stop when the film is changed.

  2. Forming

    Bag forming with optical control and automatic module adjustment.

  3. Filling

    Filling from a weigher or dosing unit, with automatic weight correction.

  4. Spout placement carousel

    Spout

    Spout placement, then sealing and flattening over several stations.

  5. Inspection and outfeed

    Cameras check the spout seal and the top seal before outfeed.

Does it fit your product?

Tell us what you pack, in which format and at what speed. An engineer studies your case and replies with a proposal.

Contact formCall usSend an emailWhatsApp
  • Installation and commissioning
  • Operator training
  • Remote support
  • Spare parts and maintenance

Ask about this machine

HFX 210 CS

The controller of the data collected in this form is YM Packaging Group, S.L. (VAT no. ESB54811609), registered office at Calle Santuario de la Luz 5, 03290 Elche (Alicante), Spain, telephone +34 966 624 003. The purpose of the processing is to answer your request for information or a quotation and, where applicable, to manage the business relationship that results from it. The legal basis is your consent and the steps taken at your request before entering into a contract.

The data are processed through Cloudflare (website hosting, spam protection and a record of the requests received), Resend (email delivery) and Supabase (our CRM), acting as data processors. Some of these providers may process data outside the European Economic Area, under the EU-US Data Privacy Framework or standard contractual clauses. No data will be disclosed to other third parties unless required by law. You may exercise your rights of access, rectification, erasure and portability, and to restrict or object to the processing, by writing to ympackaging@ympackaging.com, and lodge a complaint with the Spanish Data Protection Agency (aepd.es).

More information in our Privacy policy.

Technical specifications

Bag and formats

Minimum bag size100 × 140 × (25 × 2) mm (width × height × gusset)
Maximum bag size205 × 320 × (50 × 2) mm
Bag typesSpouted doypack, doypack, 3- and 4-side seal
ProductsSolids, liquids, solid + liquid and powder

Performance

Speed150–180 bags/min (depending on product)
Motion typeContinuous
Format changeOver 80% of adjustments made by servo motor

Power and consumption

Power supplyAC 380 V · 50/60 Hz
Power15 kW
Air consumption0.6–1.5 m³/min
Noise level< 80 dB

Machine

Dimensions15,056 × 2,035 × 2,350 mm (length × width × height)
Net weight14,000 kg

Modules and options

Automatic weight correction

Connected to the checkweigher, it adjusts filling in real time and reduces product giveaway.

Quick-change hoppers

Quick hopper connection: changing between products takes less time.

Hygienic design

Surfaces with no exposed screws or air tubes and fewer corners where dirt can build up: easier to clean.

Multiple sealing stations

Reinforced sealing and flattening for a strong seal and a shelf-ready finish.

Cap and spout module

Places and seals the cap or spout on the machine itself; a simple module to operate.

Doypack forming module

Switches quickly between 3-side seal, 4-side seal and doypack bags on the same machine.

Automatic reel splicing

Changes the reel while the machine is running: production does not stop when the film runs out.

Camera seal inspection

The cameras check the spout seal and the top seal in real time.

Products and sectors

Product types

  • Solids
  • Liquids
  • Solid + liquid
  • Powder

Sectors

Complete line

The machine integrates with the rest of the line: dosing, quality control and end of line.

  1. DosingMultihead weigher
  2. This machineHFX 210 CS
  3. Weight controlCheckweigher
  4. Quality controlMetal detector
  5. End of lineCase packing and palletising

Is this the right machine for your product?

Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.

Contact formCall usSend an emailWhatsApp

Frequently asked questions

What products is the HFX 210 CS for?

For products in spouted doypacks: purées and compotes, sauces, drinks, gels, detergents and other liquids or semi-liquids, as well as solids and powder.

What speed does it reach?

Between 150 and 180 bags per minute in continuous motion, depending on the product and the bag size.

How is seal quality checked?

Cameras check the spout seal and the top seal of every bag in real time.

Can it also make doypacks without a spout?

Yes. With the doypack forming module it switches quickly between doypack, 3-side seal and 4-side seal.

What is the standard-range alternative?

The HF also makes spouted bags, at a lower speed (HF 220: 40–70 bags/min).

For YM customers only

Already running a YM machine? We can supply the pouches too

Doypack pouches with or without zipper, spout or valve, and 3-side seal sachets, sized for your packing machine.

  • Doypack
  • With or without zipper
  • With or without spout
  • With or without valve
  • 3-side seal sachet
See pouches and orderMessage us on WhatsApp

Variants and related models

Models of the same family and their counterpart in the other range.

Variant · doypack without spout
Variant · intermittent duplex
Counterpart · standard range
