Horizontal packaging machinesHigh-speed range

HFX 210 C horizontal packaging machine

The HFX 210 C horizontal packaging machine forms, fills and seals doypacks from the reel in continuous motion. With no stops at each station, it reaches 120–180 bags per minute with less noise and steady running over long shifts, and it can make custom-designed special-shaped bags.

HFX 210 C

bags/min
120–180
motion
Continuous
bag width
100–205 mm
power
15 kW
Request informationSee it in action
YM Packaging HFX 210 C continuous-motion horizontal packaging machine, a long stainless steel line with touch screen
HFX 210 C

In action

Continuous pouch forming
Stations in continuous motion
Pouch filling
Pouch outfeed

Why choose it

01

Continuous motion

The machine does not stop at each station: less vibration, less noise and a steady output over long shifts.

02

Up to 180 bags per minute

The highest output in the range for medium-sized doypacks, with an overall performance that lets you choose a single model for the line.

03

Servo on every axis

Each axis moves only when needed, which cuts energy use. The screen shows voltage, current and air consumption in real time.

04

Recipe-based format changes

Each recipe stores the settings and shows which parts to change; the time of every changeover is logged so it can keep improving.

05

Quality and OEE at a glance

In-line detection of bag loading, height, coding and weight; the HMI shows OEE and production data by user.

06

Less film, lower cost

Precise bag cutting and less trim waste: film consumption goes down, and so does the cost per bag.

What it can pack

  • Solids and granules
  • Liquids
  • Powder
  • Solid + liquid

Gallery

Pack formats

Doypack

Doypack

100–205 mm wide

Formed from the reel, also with a special shape.

How it works

  1. Film entering the HFX 210 C from the unwinder

    Unwinding and splicing

    Unwinding under controlled tension and automatic splicing to change reels on the run.

  2. Forming station with the control screen next to the film

    Continuous forming

    The film moves forward without stopping while the bag is formed and Euro holes or easy-open notches are punched.

  3. Pouches joined in the film before cutting, with the print-mark sensor

    Sealing and cutting

    Sealing and cutting of each bag synchronised with the continuous motion.

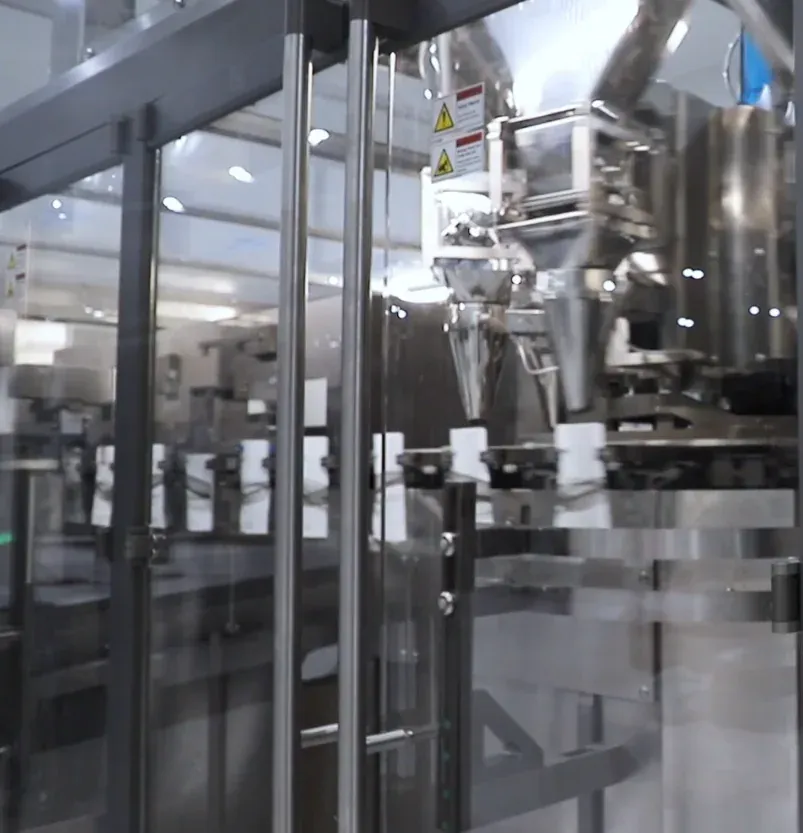

  4. Open doypack pouches in the grippers during filling

    Tracking fill

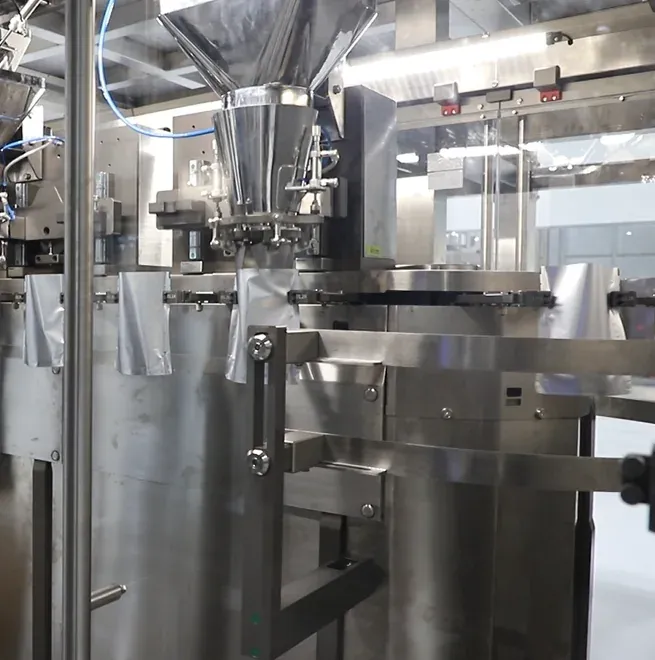

    The hopper travels with the bag and the bottom vibrates to settle the product: more filling time at higher speed.

  5. Finished pouches leaving on the chute at the end of the machine

    Closing and outfeed

    Deaeration, top seal and bag outfeed to the checkweigher.

Does it fit your product?

Tell us what you pack, in which format and at what speed. An engineer studies your case and replies with a proposal.

Contact formCall usSend an emailWhatsApp
  • Installation and commissioning
  • Operator training
  • Remote support
  • Spare parts and maintenance

Ask about this machine

HFX 210 C

The controller of the data collected in this form is YM Packaging Group, S.L. (VAT no. ESB54811609), registered office at Calle Santuario de la Luz 5, 03290 Elche (Alicante), Spain, telephone +34 966 624 003. The purpose of the processing is to answer your request for information or a quotation and, where applicable, to manage the business relationship that results from it. The legal basis is your consent and the steps taken at your request before entering into a contract.

The data are processed through Cloudflare (website hosting, spam protection and a record of the requests received), Resend (email delivery) and Supabase (our CRM), acting as data processors. Some of these providers may process data outside the European Economic Area, under the EU-US Data Privacy Framework or standard contractual clauses. No data will be disclosed to other third parties unless required by law. You may exercise your rights of access, rectification, erasure and portability, and to restrict or object to the processing, by writing to ympackaging@ympackaging.com, and lodge a complaint with the Spanish Data Protection Agency (aepd.es).

More information in our Privacy policy.

Technical specifications

Bag and formats

Minimum bag size100 × 140 × (25 × 2) mm (width × height × gusset)
Maximum bag size205 × 320 × (50 × 2) mm
Bag typesDoypack, zipper, 3- and 4-side seal, special shape, with cap (optional)
ProductsSolids, liquids, solid + liquid and powder

Performance

Speed120–180 bags/min (depending on product)
Motion typeContinuous
DriveServo on all axes

Power and consumption

Power supplyAC 380 V · 50/60 Hz
Power15 kW
Air consumption0.6–1.5 m³/min
Noise level< 80 dB

Machine

Dimensions11,570 × 2,000 × 2,150 mm (length × width × height)
Maximum dimensions11,660 × 2,205 × 2,150 mm

Dimensions

Schematic front elevation of the HFX 210 C horizontal packaging machine11570 × 2150 mm
Schematic side view of the HFX 210 C horizontal packaging machine2000 × 2150 mm

Modules and options

Tracking filling hopper

The hopper travels with the bag over several stations and gives more than four times the filling time: higher speed, even with bulky products.

Bag bottom vibration

A servo vibrates the bag bottom during filling: the product settles, the bag is fuller and the weight is more consistent.

Euro hole and easy-open notch punch

Punches the Euro hang hole or the easy-open notch on the machine itself.

In-line zipper

Adds the zipper closure while the bag is formed, with no loss of speed.

Automatic reel splicing

Changes the reel while the machine is running: production does not stop when the film runs out.

Camera inspection

Checks the print, batch number, QR code or barcode of every bag in line.

Premade pouch module

Lets the same machine also run premade pouches, as well as forming bags from the reel.

Die-cut shaped bags

Cuts bags with special outlines to make the product stand out on the shelf.

Self-adjusting jaws and grippers

The sealing jaws and grippers position themselves automatically at every format change.

Cyclone trim separator

Extracts the film trimmings and separates them for recycling.

Cap and spout module

Places and seals the cap or spout on the machine itself; a simple module to operate.

Deaeration

Removes air from the bag by vacuum and mechanical pressure before sealing: the bag takes up less space and travels better.

Products and sectors

Product types

  • Solids
  • Liquids
  • Solid + liquid
  • Powder

Sectors

Complete line

The machine integrates with the rest of the line: dosing, quality control and end of line.

  1. DosingMultihead weigher
  2. This machineHFX 210 C
  3. Weight controlCheckweigher
  4. Quality controlMetal detector
  5. End of lineCase packing and palletising

Is this the right machine for your product?

Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.

Contact formCall usSend an emailWhatsApp

Frequently asked questions

What speed does the HFX 210 C reach?

Between 120 and 180 bags per minute in continuous motion. The actual speed depends on the product and the bag size.

What is the advantage of continuous motion?

The bag does not stop at each station: there is less vibration and noise, running is steadier and the filling time is longer thanks to the tracking hopper.

How does it differ from the HF?

The HF is our intermittent standard-range machine (HF 220: 40–70 bags/min). The HFX 210 C makes the same type of bag at 120–180 bags/min, with servo on all axes, OEE on screen and high-end modules.

What bag sizes does it handle?

From 100 × 140 mm with a 25 + 25 mm gusset to 205 × 320 mm with a 50 + 50 mm gusset.

Can it make bags with a cap?

Yes, with the optional cap module. For spouted bags at high output there is the HFX 210 CS.

For YM customers only

Already running a YM machine? We can supply the pouches too

Doypack pouches with or without zipper, spout or valve, and 3-side seal sachets, sized for your packing machine.

  • Doypack
  • With or without zipper
  • With or without spout
  • With or without valve
  • 3-side seal sachet
See pouches and orderMessage us on WhatsApp

Variants and related models

Models of the same family and their counterpart in the other range.

Variant · intermittent duplex
Variant · spouted bag
Counterpart · standard range
