Horizontal packaging machinesHigh-speed range

EPX 430 L horizontal packaging machine

The EPX 430 L horizontal packaging machine fills and seals large premade pouches: from 170 to 430 mm wide and up to 1 metre high, for animal feed, flours, milk powder, detergents or bulk products. In-line nitrogen injection to preserve the product and fast changeovers between SKUs.

EPX 430 L

bags/min
10–40
bag height
1 m
bag width
170–430 mm
in-line injection
N₂
Request informationSee it in action
YM Packaging EPX 430 L horizontal packaging machine for large bags up to one metre, in stainless steel with an overhead dosing structure
EPX 430 L

In action

Pouch feeding from the magazine
Pouch filling under the hoppers

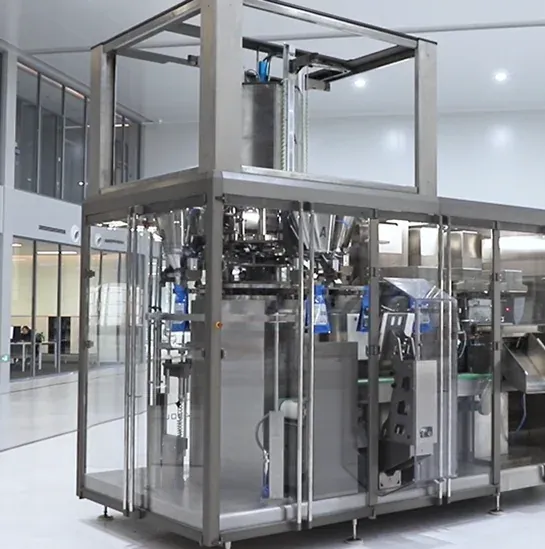

General view of the EPX 430 L in operation
Large pouches moving through the stations

Why choose it

01

Bags up to 1 metre

A range from 165–170 to 430 mm wide and up to 1,000 mm high on a single machine.

02

In-line nitrogen

Nitrogen injection to keep the product fresh; suited to fast changeovers between SKUs.

03

Production data at a glance

Detection of loading, height and coding on every bag; the HMI shows OEE and supports multiple users.

04

Servo on every axis

Each axis moves only when needed, which cuts energy use. The screen shows voltage, current and air consumption in real time.

05

Hygienic design

Sealed drives, with no exposed screws or air tubes; the jaw Teflon and the belts come off without tools.

06

All bag types

Stand-up, flat, zipper, spouted, 3- or 4-side seal, gusseted and pillow bags, and bags for powder or liquid.

What it can pack

  • Solids and granules
  • Liquids
  • Powder
  • Solid + liquid

Gallery

Pack formats

Doypack

Doypack

170–430 mm wide

Up to 1,000 mm high.

How it works

  1. Empty pouches stacked on the EPX 430 L pouch feeding conveyor

    Bag loading

    Magazine and feeding for large bags.

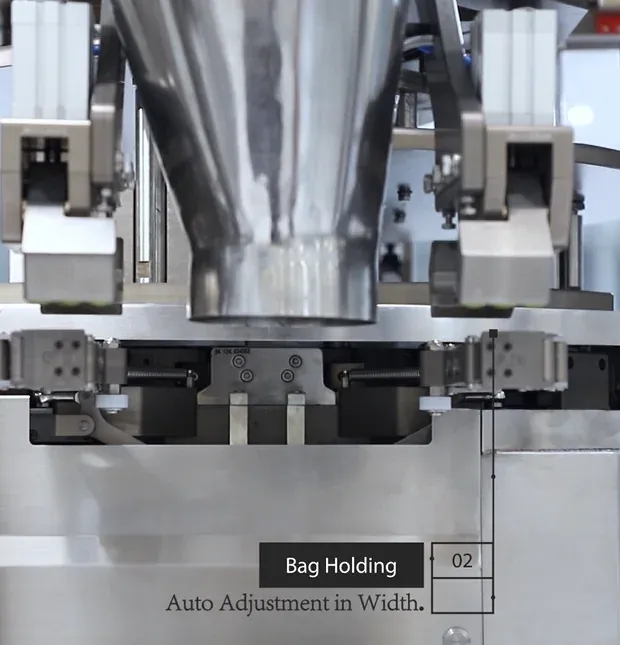

  2. Grippers holding doypack pouches for opening

    Opening

    Bag opening and level and height check.

  3. Large pouches up to one metre in the grippers during filling

    Filling

    Filling from the overhead dosing structure, with bottom vibration.

  4. Filled pouches in the grippers, on their way to the sealing station

    Nitrogen and sealing

    Nitrogen injection and bag sealing.

Does it fit your product?

Tell us what you pack, in which format and at what speed. An engineer studies your case and replies with a proposal.

Contact formCall usSend an emailWhatsApp
  • Installation and commissioning
  • Operator training
  • Remote support
  • Spare parts and maintenance

Ask about this machine

EPX 430 L

The controller of the data collected in this form is YM Packaging Group, S.L. (VAT no. ESB54811609), registered office at Calle Santuario de la Luz 5, 03290 Elche (Alicante), Spain, telephone +34 966 624 003. The purpose of the processing is to answer your request for information or a quotation and, where applicable, to manage the business relationship that results from it. The legal basis is your consent and the steps taken at your request before entering into a contract.

The data are processed through Cloudflare (website hosting, spam protection and a record of the requests received), Resend (email delivery) and Supabase (our CRM), acting as data processors. Some of these providers may process data outside the European Economic Area, under the EU-US Data Privacy Framework or standard contractual clauses. No data will be disclosed to other third parties unless required by law. You may exercise your rights of access, rectification, erasure and portability, and to restrict or object to the processing, by writing to ympackaging@ympackaging.com, and lodge a complaint with the Spanish Data Protection Agency (aepd.es).

More information in our Privacy policy.

Technical specifications

Bag and formats

Minimum bag size170 × 300 × (25 × 2) mm (width × height × gusset)
Maximum bag size430 × 1,000 × (75 × 2) mm
Bag typesDoypack, flat, zipper, spout, 3- and 4-side seal, gusseted, pillow
ProductsSolids, liquids, solid + liquid and powder

Performance

Speed10–40 bags/min (depending on product)
AtmosphereIn-line nitrogen injection

Power and consumption

Power supplyAC 380 V · 50/60 Hz
Power8 kW
Air consumption0.6–1.5 m³/min
Noise level< 80 dB

Machine

Dimensions5,212 × 2,000 × 2,550 mm (length × width × height)
Maximum dimensions5,304 × 4,876 × 3,800 mm

Dimensions

Schematic front elevation of the EPX 430 L horizontal packaging machine5212 × 2550 mm
Schematic side view of the EPX 430 L horizontal packaging machine2000 × 2550 mm

Modules and options

Nitrogen injection

Displaces the oxygen in the bag to extend product life; with milk powder, residual oxygen of 4–7%.

Bag position and height check

Detects the position and height of every bag in line to ensure correct sealing and finish.

High-speed zipper opening

Opens the zipper of each premade pouch without reducing the machine's output.

Quick-change hoppers

Quick hopper connection: changing between products takes less time.

Bag bottom vibration

A servo vibrates the bag bottom during filling: the product settles, the bag is fuller and the weight is more consistent.

Servo-driven bag feeding

Several servo motors feed the bags at high speed, whatever the bag type and material.

Hygienic design

Surfaces with no exposed screws or air tubes and fewer corners where dirt can build up: easier to clean.

Products and sectors

Product types

  • Solids
  • Liquids
  • Solid + liquid
  • Powder

Sectors

Complete line

The machine integrates with the rest of the line: dosing, quality control and end of line.

  1. DosingMultihead weigher
  2. This machineEPX 430 L
  3. Weight controlCheckweigher
  4. Quality controlMetal detector
  5. End of lineCase packing and palletising

Is this the right machine for your product?

Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.

Contact formCall usSend an emailWhatsApp

Frequently asked questions

What bag size does the EPX 430 L handle?

From 170 × 300 mm with a 25 + 25 mm gusset to 430 × 1,000 mm with a 75 + 75 mm gusset.

What speed does it reach?

Between 10 and 40 bags per minute, depending on the product and the bag size.

What is nitrogen injection for?

It displaces the oxygen in the bag and extends the shelf life of sensitive products such as milk powder, coffee or nuts.

What products does it pack?

Animal feed and pet food, flours, milk powder, detergents, fertilisers and other products in large bags.

What is the standard-range alternative?

The EPJM, a premade pouch machine, for bags from 110 to 410 mm wide at up to 15 bags/min.

For YM customers only

Already running a YM machine? We can supply the pouches too

Doypack pouches with or without zipper, spout or valve, and 3-side seal sachets, sized for your packing machine.

  • Doypack
  • With or without zipper
  • With or without spout
  • With or without valve
  • 3-side seal sachet
See pouches and orderMessage us on WhatsApp

Variants and related models

Models of the same family and their counterpart in the other range.

Variant · up to 800 mm high
Variant · continuous with weighing
Counterpart · standard range
