Horizontal packaging machinesHigh-speed range

EPX 430 H horizontal packaging machine

The EPX 430 H horizontal packaging machine is the premade pouch machine for wide formats: 4-side seal bags and doypacks from 170 to 430 mm wide and up to 800 mm high. Its tracking filling module fills faster and more steadily, with no time limit per bag.

EPX 430 H

bags/min
20–50
bag width
170–430 mm
max. height
800 mm
power
7.5 kW
Request informationSee it in action
YM Packaging EPX 430 H horizontal packaging machine for large-format premade pouches, in stainless steel with transparent doors
EPX 430 H

In action

Overall view with the doser

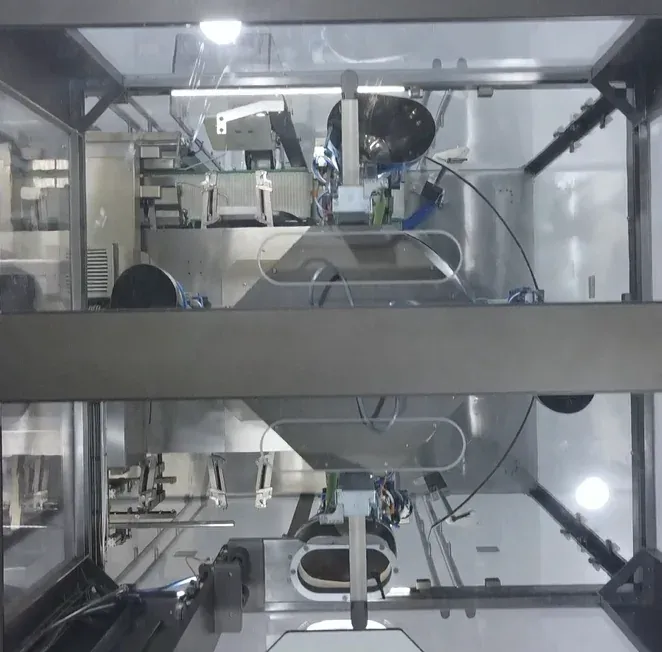

Filling from the dosing hoppers
Neat wiring under stainless-steel covers
Bag feeding module

Why choose it

01

Tracking fill

Several filling stations: 4.5 times more filling time than a conventional machine, faster and steadier.

02

Wide format

Bag widths from 165–170 mm to 430 mm on the same machine.

03

Ideal for 4-side seal bags

An economical, leak-tight and uniform flat bag, easy to case pack, with an easy-open notch and suited to high speed.

04

Servo on every axis

Each axis moves only when needed, which cuts energy use. The screen shows voltage, current and air consumption in real time.

05

Space well used

Rotary chain structure that also fills on the return run: more stations in fewer metres.

06

Hygienic design

Sealed drives, with no exposed screws or air tubes; the jaw Teflon and the belts come off without tools.

What it can pack

  • Solids and granules
  • Liquids
  • Powder
  • Solid + liquid

Gallery

Pack formats

How it works

  1. Large bag held in the transport grippers

    Bag loading

    Servo-driven feeding of large bags.

  2. Suction cups at the bag mouth to open it

    Opening

    Vacuum opening with a quick-change filter.

  3. Filling hopper inside the bag

    Filling

    Tracking fill from a weigher or other dosing unit, with bottom vibration.

  4. Sealing and outfeed

    Self-adjusting jaws and bag outfeed.

Does it fit your product?

Tell us what you pack, in which format and at what speed. An engineer studies your case and replies with a proposal.

Contact formCall usSend an emailWhatsApp
  • Installation and commissioning
  • Operator training
  • Remote support
  • Spare parts and maintenance

Ask about this machine

EPX 430 H

The controller of the data collected in this form is YM Packaging Group, S.L. (VAT no. ESB54811609), registered office at Calle Santuario de la Luz 5, 03290 Elche (Alicante), Spain, telephone +34 966 624 003. The purpose of the processing is to answer your request for information or a quotation and, where applicable, to manage the business relationship that results from it. The legal basis is your consent and the steps taken at your request before entering into a contract.

The data are processed through Cloudflare (website hosting, spam protection and a record of the requests received), Resend (email delivery) and Supabase (our CRM), acting as data processors. Some of these providers may process data outside the European Economic Area, under the EU-US Data Privacy Framework or standard contractual clauses. No data will be disclosed to other third parties unless required by law. You may exercise your rights of access, rectification, erasure and portability, and to restrict or object to the processing, by writing to ympackaging@ympackaging.com, and lodge a complaint with the Spanish Data Protection Agency (aepd.es).

More information in our Privacy policy.

Technical specifications

Bag and formats

Minimum bag size170 × 300 × (25 × 2) mm (width × height × gusset)
Maximum bag size430 × 800 × (75 × 2) mm
Bag types4-side seal, 3-side seal, doypack, zipper
ProductsSolids, liquids, solid + liquid and powder

Performance

Speed20–50 bags/min (depending on product)
Motion typeIntermittent, tracking fill

Power and consumption

Power supplyAC 380 V · 50/60 Hz
Power7.5 kW
Air consumption0.6–1.5 m³/min
Noise level< 80 dB

Machine

Dimensions5,212 × 2,000 × 2,150 mm (length × width × height)
Maximum dimensions5,304 × 5,063 × 2,600 mm

Modules and options

Bag bottom vibration

A servo vibrates the bag bottom during filling: the product settles, the bag is fuller and the weight is more consistent.

Vacuum with removable filter

The vacuum system has a quick-change filter: maintenance is simpler.

Bag position and height check

Detects the position and height of every bag in line to ensure correct sealing and finish.

Servo-driven bag feeding

Several servo motors feed the bags at high speed, whatever the bag type and material.

Self-adjusting jaws and grippers

The sealing jaws and grippers position themselves automatically at every format change.

Weigher integration

Connects to multihead weighers, linear weighers and other dosing units, with quick mounting and easy removal for cleaning.

Hygienic design

Surfaces with no exposed screws or air tubes and fewer corners where dirt can build up: easier to clean.

Products and sectors

Product types

  • Solids
  • Liquids
  • Solid + liquid
  • Powder

Sectors

Complete line

The machine integrates with the rest of the line: dosing, quality control and end of line.

  1. DosingMultihead weigher
  2. This machineEPX 430 H
  3. Weight controlCheckweigher
  4. Quality controlMetal detector
  5. End of lineCase packing and palletising

Is this the right machine for your product?

Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.

Contact formCall usSend an emailWhatsApp

Frequently asked questions

What bag sizes does the EPX 430 H handle?

From 170 × 300 mm with a 25 + 25 mm gusset to 430 × 800 mm with a 75 + 75 mm gusset.

What speed does it reach?

Between 20 and 50 bags per minute, depending on the product and the bag size.

Why choose a 4-side seal bag?

It is an economical, leak-tight flat bag, very uniform for packing several units in a case, with an easy-open notch and suited to high speed.

What is the difference from the EPX 430 L?

The EPX 430 L handles bags up to 1 m high and offers in-line nitrogen injection.

What is the standard-range alternative?

The EPJM, a premade pouch machine, for bags from 110 to 410 mm wide at up to 15 bags/min.

For YM customers only

Already running a YM machine? We can supply the pouches too

Doypack pouches with or without zipper, spout or valve, and 3-side seal sachets, sized for your packing machine.

  • Doypack
  • With or without zipper
  • With or without spout
  • With or without valve
  • 3-side seal sachet
See pouches and orderMessage us on WhatsApp

Variants and related models

Models of the same family and their counterpart in the other range.

Variant · continuous with weighing
Variant · up to 1 m high
Counterpart · standard range
