Doypack
130–320 mm wide
Up to 600 mm high.
Horizontal packaging machinesHigh-speed range
EPX 320 C horizontal packaging machine
The EPX 320 C horizontal packaging machine fills and seals premade pouches in continuous motion at up to 100 bags per minute. It covers a very wide range, from 130 to 320 mm wide and up to 600 mm high, and changes format with one button on the screen.
Models: EPX 320 C
- bags/min
- 60–100
- motion
- Continuous
- bag width
- 130–320 mm
- max. height
- 600 mm
In action
Why choose it
01
Steady continuous production
Several continuous filling stations: 4.5 times more filling time than a conventional machine.
02
Very wide format range
Recipes for every changeover, with the parts to change shown on screen and the changeover time logged.
03
Closed-loop quality
In-line weighing, bag loading and height detection and coding checks, with OEE on screen.
04
Hygienic design
Sealed drives, with no exposed screws or air tubes; the jaw Teflon and the belts come off without tools.
05
One-button format change
The changeover is started from the HMI; the process is simple and quick.
06
Space well used
Rotary chain structure that also fills on the return run: more stations in fewer metres.
What it can pack
- Solids and granules
- Liquids
- Powder
- Solid + liquid
Gallery
Pack formats
How it works
Bag loading
Servo-driven feeding for any bag type and material.
Opening
Bag blowing with a check: it is only filled if it is open.

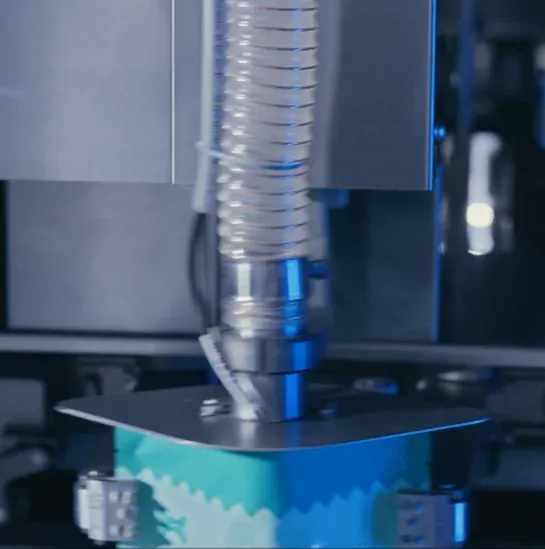

Continuous filling
Several tracking filling stations, with bottom vibration.
Sealing and outfeed
Bag sealing and outfeed to weight control.
Does it fit your product?
Tell us what you pack, in which format and at what speed. An engineer studies your case and replies with a proposal.
- Installation and commissioning
- Operator training
- Remote support
- Spare parts and maintenance
Ask about this machine
EPX 320 C
Thank you for contacting us!
We have received your message and will get back to you as soon as possible.
Technical specifications
Bag and formats
| Minimum bag size | 130 × 200 × (25 × 2) mm (width × height × gusset) |
|---|---|
| Maximum bag size | 320 × 600 × (75 × 2) mm |
| Bag types | Doypack, zipper, 3- and 4-side seal, special shape |
| Products | Solids, liquids, solid + liquid and powder |
Performance
| Speed | 60–100 bags/min (depending on product) |
|---|---|
| Motion type | Continuous |
Power and consumption
| Power supply | AC 380 V · 50/60 Hz |
|---|---|
| Power | 15 kW |
| Air consumption | 0.6–1.5 m³/min |
| Noise level | < 80 dB |
Machine
| Dimensions | 12,688 × 2,053 × 2,356 mm (length × width × height) |
|---|
Modules and options
Servo-driven bag feeding
Several servo motors feed the bags at high speed, whatever the bag type and material.
Bag position and height check
Detects the position and height of every bag in line to ensure correct sealing and finish.
Tracking filling hopper
The hopper travels with the bag over several stations and gives more than four times the filling time: higher speed, even with bulky products.
Bag bottom vibration
A servo vibrates the bag bottom during filling: the product settles, the bag is fuller and the weight is more consistent.
Bottom opening
Opens the bag bottom and holds it open; the height adjusts automatically to the format.
Bag coding
Accepts laser, inkjet or thermal transfer coders, with quick-adjust mounts.
Hygienic design
Surfaces with no exposed screws or air tubes and fewer corners where dirt can build up: easier to clean.
Bag opening with check
Blows the bag open and only doses when the sensor confirms it is open.
High-speed zipper opening
Opens the zipper of each premade pouch without reducing the machine's output.
What our customers say
Real customer reviews from our Google Business Profile.
Products and sectors
Product types
- Solids
- Liquids
- Solid + liquid
- Powder
Sectors
Complete line
The machine integrates with the rest of the line: dosing, quality control and end of line.
- DosingMultihead weigher
- This machineEPX 320 C
- Weight controlCheckweigher
- Quality controlMetal detector
- End of lineCase packing and palletising
Is this the right machine for your product?
Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.
Frequently asked questions
What speed does the EPX 320 C reach?
Between 60 and 100 bags per minute in continuous motion.
What bag sizes does it handle?
From 130 × 200 mm with a 25 + 25 mm gusset to 320 × 600 mm with a 75 + 75 mm gusset.
Why is it faster than a conventional premade pouch machine?
Because it fills continuously over several stations: the filling time is about 4.5 times longer, so it can run faster without spilling product.
How does it make sure the bag is open?
It blows the bag open and a sensor confirms it is open before dosing.
What is the standard-range alternative?
The EPY: the EPY 315 for bags from 150 to 315 mm at 20–40 bags/min.
