Doypack
85–205 mm wide
Premade pouch; also 3-side or 4-side seal, handle and special-shape pouches.
Horizontal packaging machinesStandard range
EPJ Duplex horizontal packaging machine
The EPJ Duplex horizontal packaging machine is the twin-lane version of the EPJ: it opens, fills and seals two premade pouches per cycle and doubles the output, from 40 to 70 bags per minute. Built in stainless steel for the food industry, it changes product quickly and with few parts to swap: it is the machine for plants with many SKUs and short runs that change format once or twice a week and need more speed than a single-lane machine.
- bags/min
- 40–70
- bags per cycle
- 2
- bag width
- 85–205 mm
- bag length
- 85–300 mm
Why choose it
01
Double speed
Two pouches per cycle: 40–70 bags per minute from one machine, without doubling the line.
02
Premade pouch, any format
Doypack, 3-side or 4-side seal, with zipper, handle, spout or a special shape, from 85 × 85 mm to 205 × 300 mm.
03
Quick format changes
Product changeovers are quick and need few parts to swap: made for many SKUs with short runs and one or two format changes a week.
04
Food-grade stainless steel
Stainless steel construction for the food industry: nuts, coffee, spices, confectionery, supplements, frozen food or pet food.
05
For any dosing system
Works with a multihead weigher, an auger filler for powders or a piston filler for liquids, depending on the product.
06
Complete line
We integrate it with dosing, metal detection, checkweighing and case packing, and hand it over running.
What it can pack
- Solids and granules
- Liquids
- Powder
- Solid + liquid
Pack formats
How it works
Pouch loading
The magazine feeds the premade pouches, two per cycle.
Opening
The machine opens both pouches to receive the product.
Filling
The dosing system (multihead weigher, auger, piston…) discharges the product into both open pouches.
Sealing
Both pouches are sealed at the same time.
Discharge
The sealed pouches leave towards the metal detector, the checkweigher and case packing.
Technical specifications
Models
| EPJ | EPJ Duplex | |
|---|---|---|
| Bags per cycle | 1 | 2 |
| Speed | 20–40 bags/min | 40–70 bags/min |
| Bag width | 150–315 mm | 85–205 mm |
| Bag height | 200–450 mm | 85–300 mm |
| Gusset | 25–60 mm | 25–50 mm |
| Power | 3.5 kW | 6 kW |
| Net weight | 3000 kg | 2000 kg |
| Dimensions | 3890 × 2230 × 1560 mm | 3460 × 2085 × 1470 mm |
Bag and formats
| Minimum bag size (width × height × gusset) | 85 × 85 × (25 × 2) mm |
|---|---|
| Maximum bag size (width × height × gusset) | 205 × 300 × (50 × 2) mm |
| Bag types | Doypack, 3-side seal, 4-side seal, with zipper, with handle, with spout and special shapes |
Performance
| Bags per cycle | 2 |
|---|---|
| Packaging speed | 40–70 bags/min, depending on product and bag size |
| Product changeover | Quick, with few parts to swap |
Power and consumption
| Power supply | AC 380 V |
|---|---|
| Installed power | 6 kW |
| Compressed air | 0.6–1.5 m³/min |
| Noise level | < 80 dB |
Dimensions and weight
| Frame and structure | Stainless steel, suitable for the food industry |
|---|---|
| Dimensions (length × width × height) | 3460 × 2085 × 1470 mm |
| Net weight | 2000 kg |
Products and sectors
Product types
Sectors
Complete line
The machine integrates with the rest of the line: dosing, quality control and end of line.
- DosingMultihead weigher
- This machineEPJ Duplex
- Quality controlMetal detector
- Weight controlCheckweigher
- End of lineCase packing and palletising
Frequently asked questions
What is a duplex packaging machine?
A machine that handles two pouches per cycle. The EPJ Duplex opens, fills and seals two premade pouches at once, which is why it reaches 40–70 bags per minute against 20–40 for the single-lane EPJ.
What pouch sizes does it take?
From 85 × 85 mm to 205 × 300 mm (width × height), with gussets of 25 to 50 mm per side. For larger pouches, up to 315 × 450 mm, there is the EPJ.
Which pouch formats does it handle?
Doypack, 3-side or 4-side seal, zipper, handle, spout and special-shape pouches.
Is it a good fit if I change product often?
Yes: product changeovers are quick and need few parts to swap. It suits plants with many SKUs and short runs that change format once or twice a week.
What does it consume?
AC 380 V power supply, 6 kW and 0.6–1.5 m³/min of compressed air. It takes up 3460 × 2085 × 1470 mm and weighs about 2000 kg.
Is this the right machine for your product?
Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.
- Installation and commissioning
- Operator training
- Remote support
- Spare parts and maintenance
For YM customers only
Already running a YM machine? We can supply the pouches too
Doypack pouches with or without zipper, spout or valve, and 3-side seal sachets, sized for your packing machine.
- Doypack
- With or without zipper
- With or without spout
- With or without valve
- 3-side seal sachet
Variants and related models
Models of the same family and their counterpart in the other range.

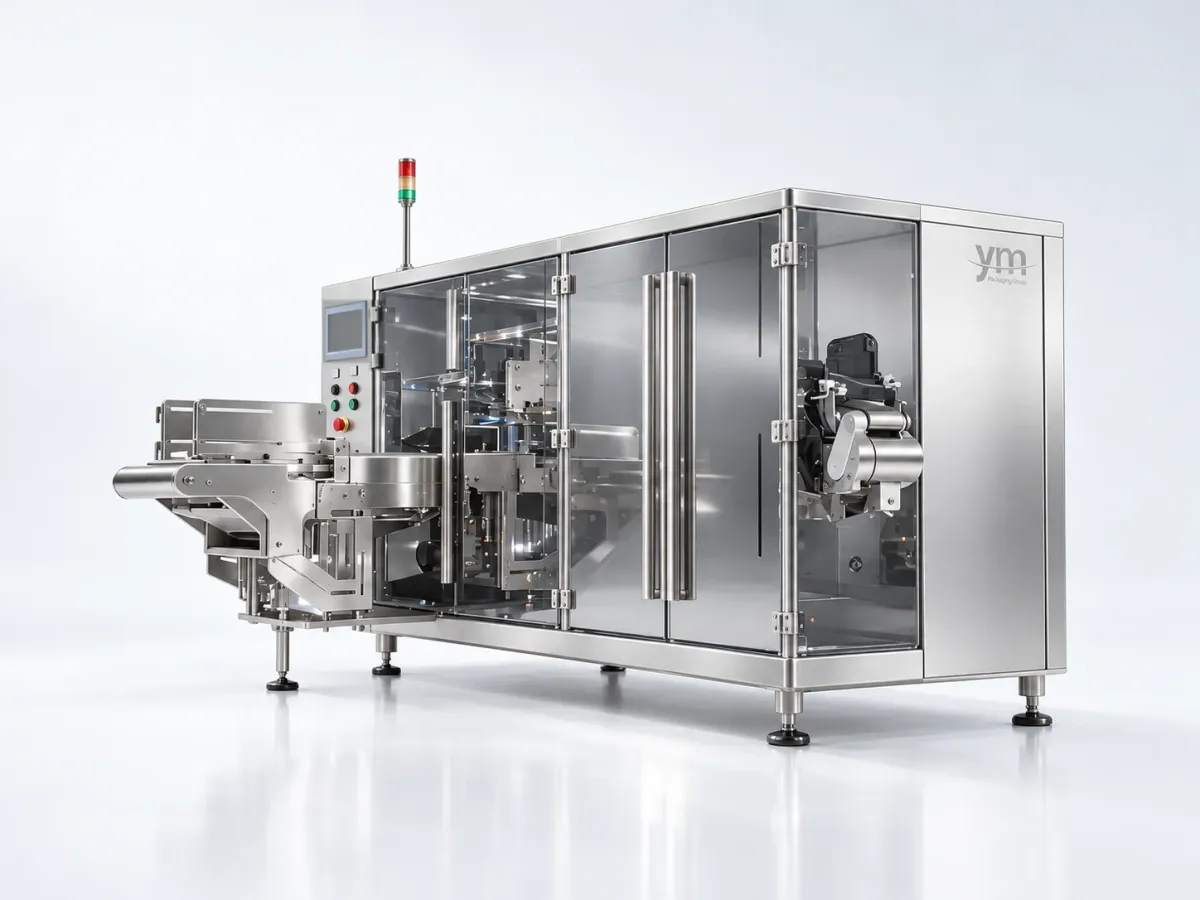

Variant · one pouch per cycle, large pouch
Standard range
Variant · low output
Standard range
EPJM 150 · EPJM 210 · EPJM 260 · EPJM 310

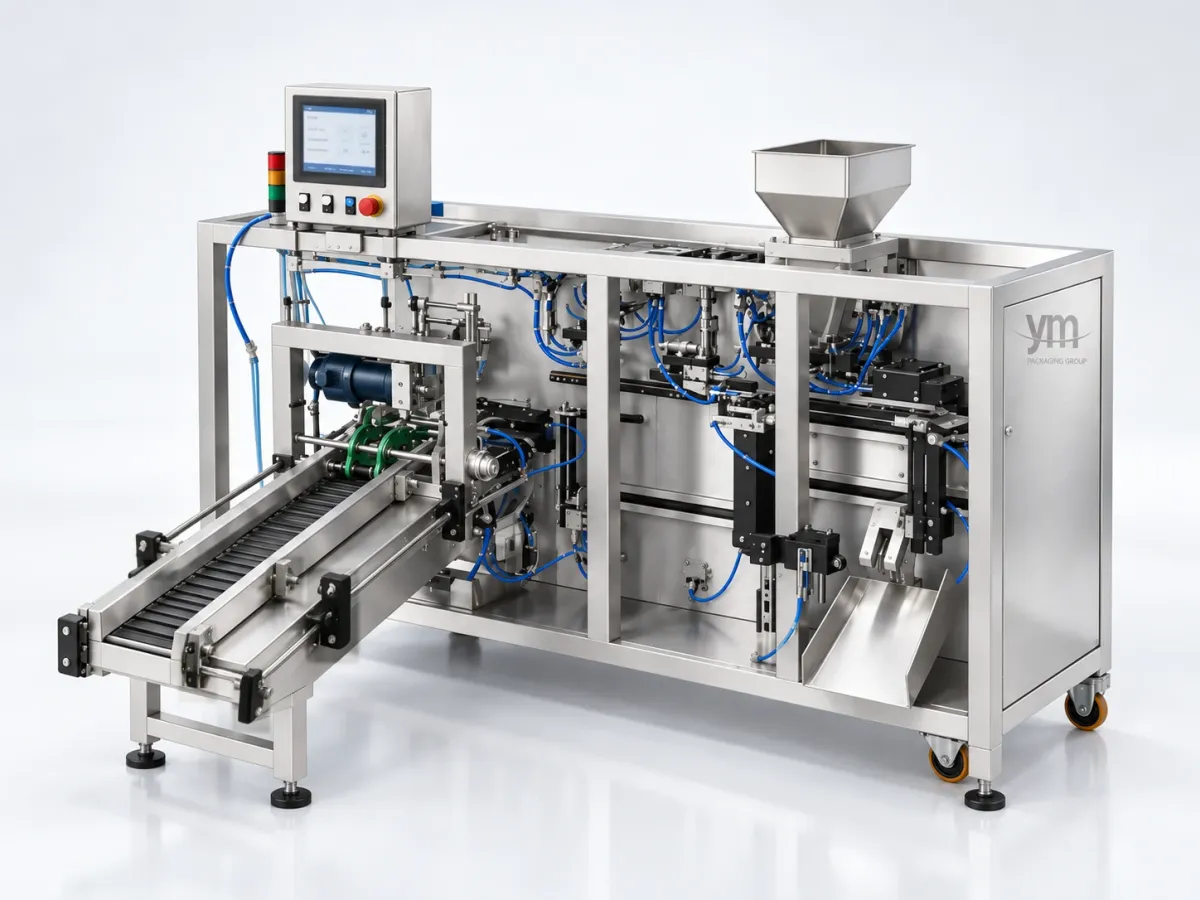

EPJM horizontal packaging machine
