Shrink wrapping

TR shrink tunnel for trays with heat-shrink film

The YM Packaging TR shrink tunnel shrink-wraps trays with heat-shrink film. Its dual temperature system with independent PID controllers sets the heat precisely and spreads it evenly, so the film shrinks without wrinkles or distortion. Silicone curtains at the infeed and outfeed keep the heat in, the perforated canvas belts withstand high temperatures and the closed painted-steel frame stands on multi-directional castors so it is easy to move. It works with POF (polyolefin) film and other industrial-grade shrink materials.

Models: TR

useful belt width: 380 mm
belt height from the floor: 750 mm
temperature control: Dual PID
total weight: 200 kg

Request information

Why choose it

Dual temperature control

Dual system with independent PID controllers for precise heat setting and a consistent finish every time.

Wrinkle-free finish

Even heat distribution prevents wrinkles and distortion of the product, for a flawless presentation.

Silicone curtains

At the infeed and outfeed, they keep the heat inside the tunnel and reduce heat loss.

POF and other shrink films

Suitable for POF (polyolefin) film and other industrial-grade shrink materials.

Closed frame on castors

Durable closed painted-steel frame on multi-directional castors, so the tunnel is easy to move.

Real-time consumption

Real-time consumption indicator to follow what the tunnel uses while it runs.

Gallery

Pack formats

Trays

Trays wrapped in heat-shrink film. For other formats, ask our technical team.

How it works

Infeed

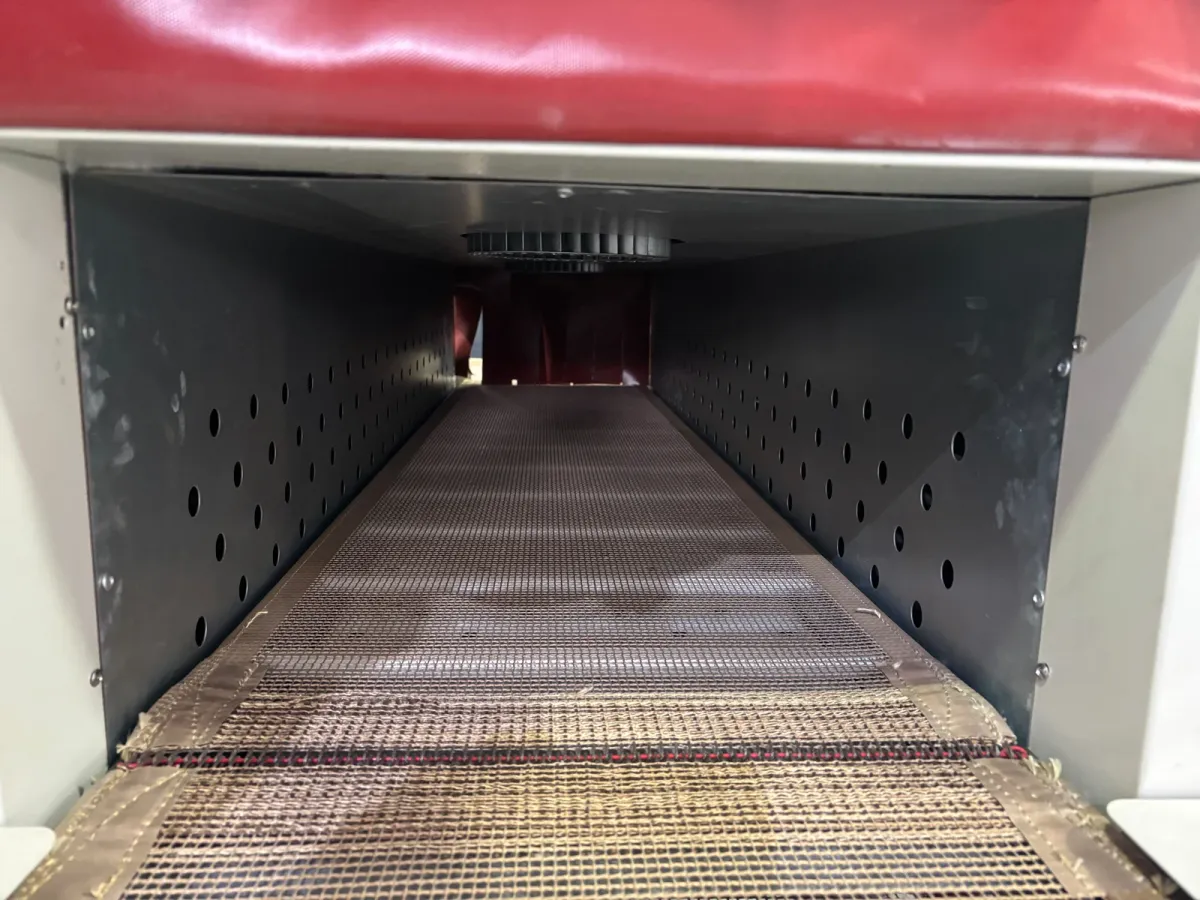

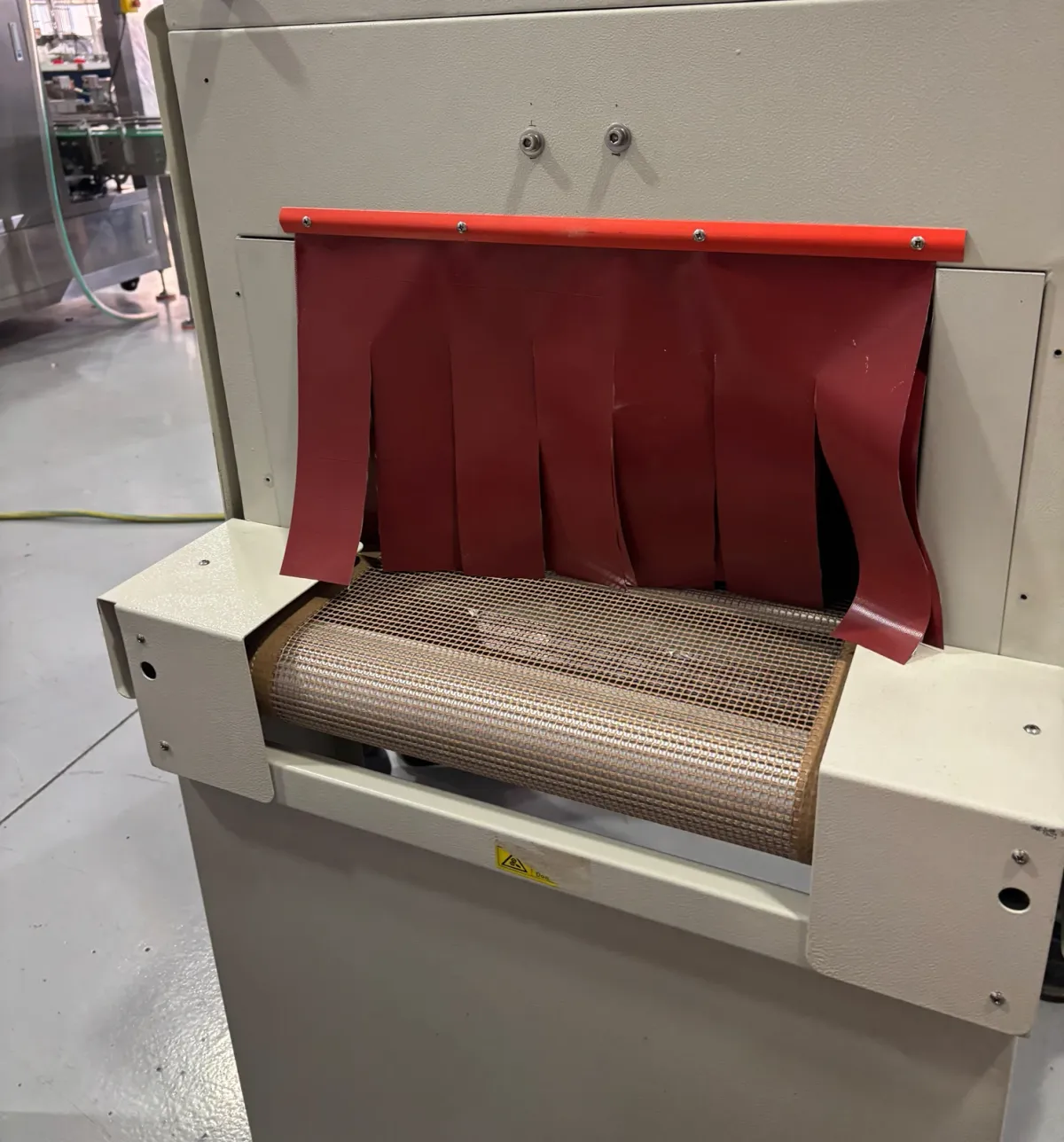

The film-wrapped tray enters the tunnel on the perforated canvas belt, through the silicone curtains.
Shrinking
The heat, controlled by the two independent PID controllers, is spread evenly and shrinks the film onto the tray.
Outfeed
The tray leaves through the outfeed curtains with the film tight and wrinkle-free, ready for the end of line.

Does it fit your product?

Tell us what you pack, in which format and at what speed. An engineer studies your case and replies with a proposal.

Contact form Call us Send an email WhatsApp

Installation and commissioning
Operator training
Remote support
Spare parts and maintenance

Ask about this machine

Name *

Company *

Email *

Phone

Product(s) to be packed *

Type of packaging *

Package dimensions *

Required speed *

Message

I have read and accept the privacy policy

The controller of the data collected in this form is YM Packaging Group, S.L. (VAT no. ESB54811609), registered office at Calle Santuario de la Luz 5, 03290 Elche (Alicante), Spain, telephone +34 966 624 003. The purpose of the processing is to answer your request for information or a quotation and, where applicable, to manage the business relationship that results from it. The legal basis is your consent and the steps taken at your request before entering into a contract.

The data are processed through Cloudflare (website hosting, spam protection and a record of the requests received), Resend (email delivery) and Supabase (our CRM), acting as data processors. Some of these providers may process data outside the European Economic Area, under the EU-US Data Privacy Framework or standard contractual clauses. No data will be disclosed to other third parties unless required by law. You may exercise your rights of access, rectification, erasure and portability, and to restrict or object to the processing, by writing to ympackaging@ympackaging.com, and lodge a complaint with the Spanish Data Protection Agency (aepd.es).

More information in our Privacy policy.

Technical specifications

Belt, dimensions and weight

Useful belt width	380 mm
Belt height from the floor	750 mm
Dimensions (length × width × height)	2,100 × 700 × 1,380 mm
Total weight	200 kg

Power

Power supply	220 V, 50/60 Hz

Film and formats

Compatible film materials	POF (polyolefin) and other industrial-grade shrink materials
Compatible format	Tray (other formats: ask our technical team)

Construction

Frame	Closed, painted steel
Moving	Multi-directional castors

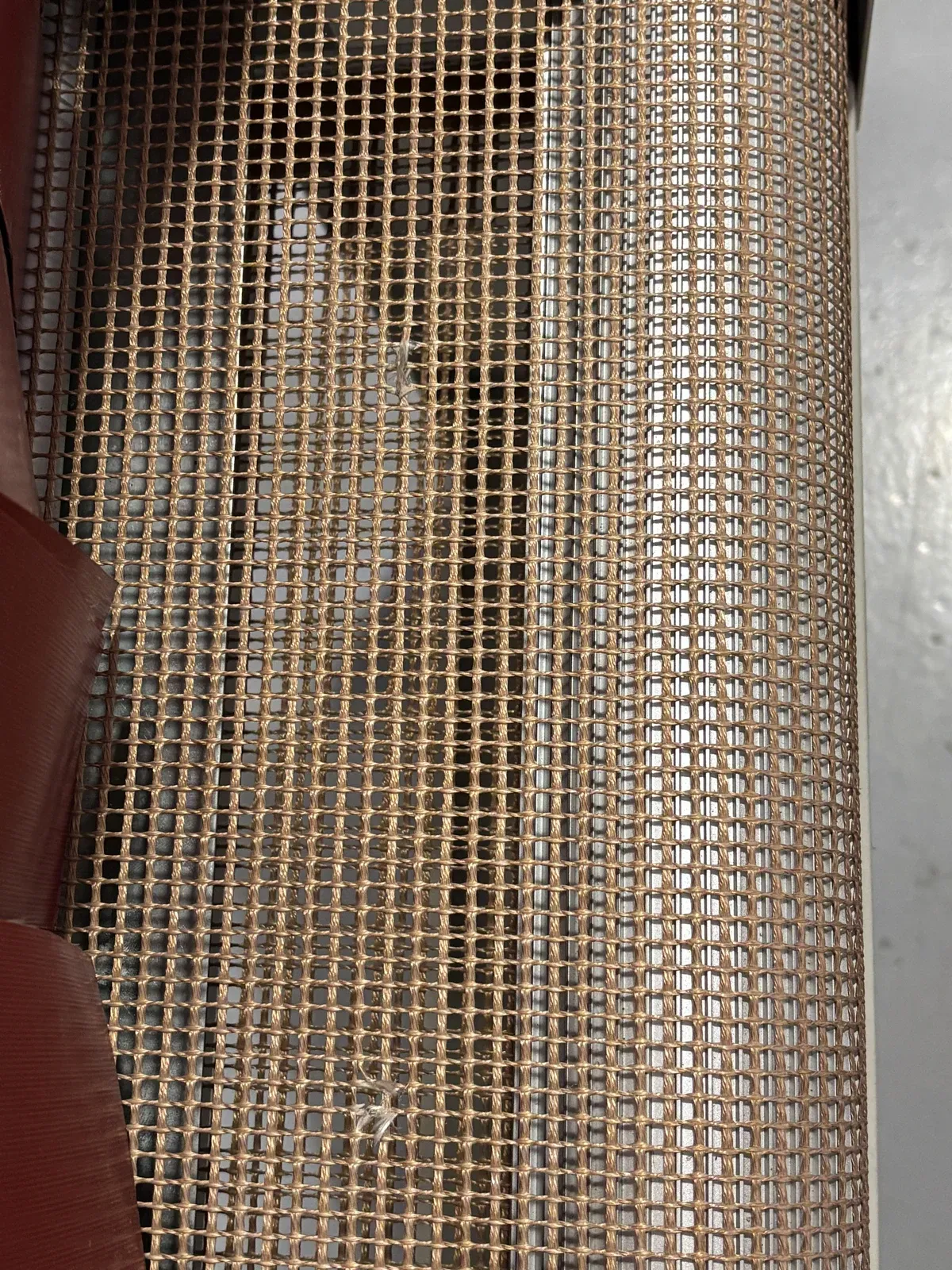

Belts	Perforated canvas, resistant to high temperatures
Infeed and outfeed	Silicone curtains

Control

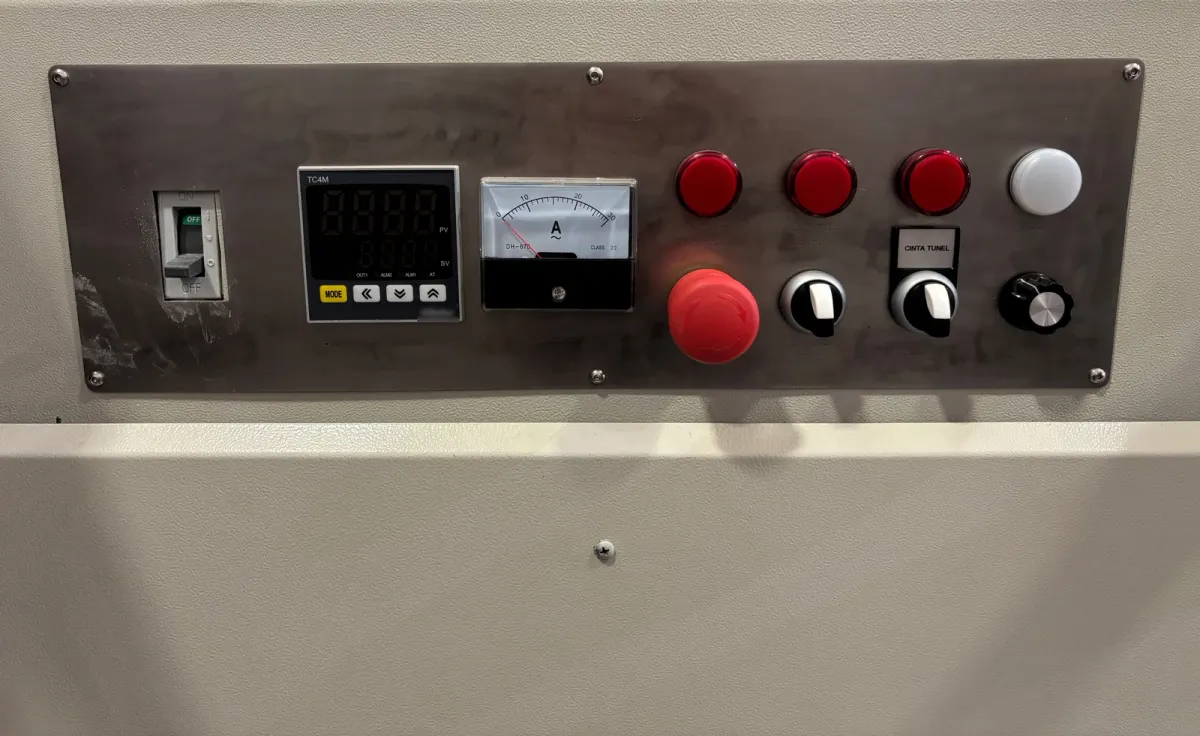

Temperature	Dual system with independent PID controllers
Consumption	Real-time indicator
Push buttons	Moeller

Complete line

The TR tunnel fits into the line between tray packing and the end of line: case packing and palletising.

PackingTray packing
This machineTR
End of lineCase packing
PalletisingPalletising

Labelling and printing at the end of the line

Complete this machine with automatic label application and printing systems to identify the product, ensure traceability and optimise logistics at the end of the line. They integrate into new or existing lines.

Label applicators

A compact, versatile format that can be installed at different points of the process, with high accuracy and connection to the plant control system and production management platforms.

Thermal transfer and inkjet

Variable information printed directly on the pack or label: thermal transfer (TTO, ribbon) for flexible film with high resolution, and non-contact inkjet for cardboard cases, pre-made bags and rigid packs such as tubs.

Print & apply

Prints the variable information on the label in real time and applies it to the pack automatically in a single process, with maximum accuracy and traceability.

Which packs

Cardboard cases (RSC, wrap-around or display)
Trays
Flow packs
Doypacks
Bags
Jars and tubs
Bottles
Pallets

Why integrate it

Modular, configurable design
High label placement accuracy
Easy integration into existing lines
Intuitive HMI programming
Adaptation to different production speeds

We choose the marking technology for the pack, the printing surface and the production requirements, and combine it with quality control, case packing, palletising and the rest of a turnkey packaging line.

Contact form

Is this the right machine for your product?

Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.

Contact form Call us Send an email WhatsApp

Frequently asked questions

What is the TR shrink tunnel used for?

To shrink-wrap trays with heat-shrink film: the heat in the tunnel shrinks the film tight around the tray.

Which films can it run?

POF (polyolefin) film and other industrial-grade shrink materials.

What tray size does it take?

The belt has a useful width of 380 mm. For other formats or sizes, ask our technical team.

How does it avoid wrinkles in the film?

With the dual temperature system with independent PID controllers and even heat distribution. The silicone curtains at the infeed and outfeed keep the heat inside the tunnel.

What installation does it need?

A 220 V, 50/60 Hz power supply. It measures 2,100 × 700 × 1,380 mm, weighs 200 kg and stands on multi-directional castors.

Can it be integrated into a line?

Yes. The belt is 750 mm from the floor and the tunnel sits between tray packing and the end of line (case packing and palletising).

What if I also need to form and seal the bag?

To form the bag from a reel, seal it and shrink it in one system, there is the TRC shrink wrapper with heat tunnel.
