Shrink wrapping

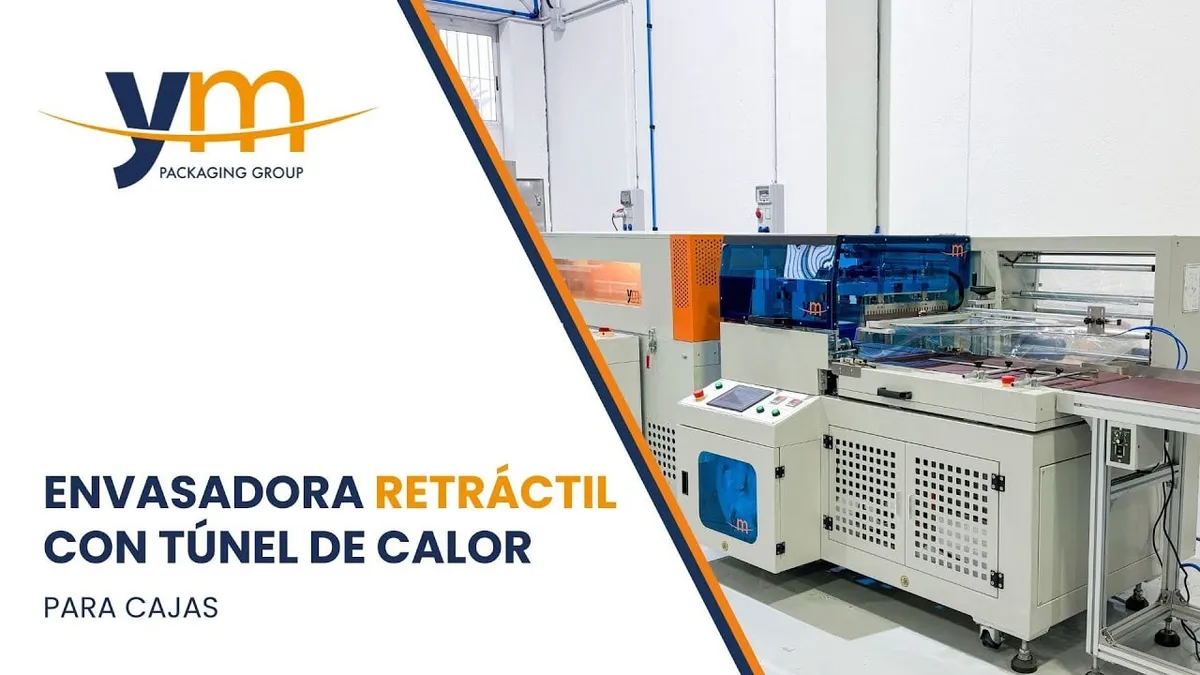

TRC shrink wrapping machine: forming, sealing and heat tunnel

The TRC shrink wrapping machine with heat tunnel is a complete shrink-packaging system: a form-fill-seal wrapper and a heat shrink tunnel. The machine forms the bag around the product from a reel of film and closes it by heat sealing; the tunnel then blows hot air to shrink the film for a tight, professional finish. It runs up to 35 pieces per minute and is controlled by a Siemens or Omron PLC with a built-in digital screen for precise speed and temperature settings.

Models: TRC

pieces/min (sealer): up to 35
maximum product: 600 × 400 mm
sealing blade: 550 × 600 mm
total power: 6 kW

Request information See it in action

TRC

In action

Why choose it

Sealing and shrinking in one system

A form-fill-seal wrapper and a heat shrink tunnel working together, from loose product to finished pack.

Bag formed from a reel

The machine forms the bag around the product from a reel of film and closes it by heat sealing.

PLC with digital screen

Siemens or Omron PLC with a built-in digital screen for precise speed and temperature settings.

Film detection

Film detection sensors to follow the process and detect faults.

Operator safety

Safety relays on the doors and alarm sensors.

Easy cleaning and maintenance

Designed for easy cleaning and maintenance, with quick access to the main components.

Pack formats

Pillow bag

Product wrapped in shrink film as a pillow pack. For other formats, ask our technical team.

How it works

Product infeed
The product reaches the form-fill-seal wrapper.
Forming and sealing
The machine forms the bag around the product from the film reel and closes it by heat sealing.
Shrinking
The heat tunnel blows hot air and shrinks the film onto the product.
Outfeed
The product leaves with a tight, professional finish, ready for the end of line.

Does it fit your product?

Tell us what you pack, in which format and at what speed. An engineer studies your case and replies with a proposal.

Contact form Call us Send an email WhatsApp

Installation and commissioning
Operator training
Remote support
Spare parts and maintenance

Ask about this machine

TRC

Name *

Company *

Email *

Phone

Product(s) to be packed *

Type of packaging *

Package dimensions *

Required speed *

Message

I have read and accept the privacy policy

The controller of the data collected in this form is YM Packaging Group, S.L. (VAT no. ESB54811609), registered office at Calle Santuario de la Luz 5, 03290 Elche (Alicante), Spain, telephone +34 966 624 003. The purpose of the processing is to answer your request for information or a quotation and, where applicable, to manage the business relationship that results from it. The legal basis is your consent and the steps taken at your request before entering into a contract.

The data are processed through Cloudflare (website hosting, spam protection and a record of the requests received), Resend (email delivery) and Supabase (our CRM), acting as data processors. Some of these providers may process data outside the European Economic Area, under the EU-US Data Privacy Framework or standard contractual clauses. No data will be disclosed to other third parties unless required by law. You may exercise your rights of access, rectification, erasure and portability, and to restrict or object to the processing, by writing to ympackaging@ympackaging.com, and lodge a complaint with the Spanish Data Protection Agency (aepd.es).

More information in our Privacy policy.

Technical specifications

General

Product size	600 × 400 × 10–100 mm or 520 × 310 × 50 mm (length × width × height), depending on the model
Power supply	220/380 V, 50/60 Hz, 3-phase
Total power	6 kW

Form-fill-seal wrapper

Maximum speed	Up to 35 pieces/min
Sealing blade size	550 × 600 mm
Dimensions (length × width × height)	1,650 × 900 × 1,550 mm
Weight	300 kg

Heat tunnel

Maximum speed	30–50 pieces/min
Tunnel opening (length × width × height)	1,500 × 500 × 300 mm
Dimensions (length × width × height)	2,000 × 780 × 1,625 mm
Weight	700 kg

Control and safety

Control	Siemens or Omron PLC with built-in digital screen
Settings	Speed and temperature
Sensors	Film detection, to follow the process and detect faults
Safety	Safety relays on the doors and alarm sensors

Ambient conditions

Operating temperature	10–30 °C
Humidity	30–70 %

Complete line

The TRC wraps and shrinks the product; then comes the end of line: case packing and palletising.

This machineTRC
End of lineCase packing
PalletisingPalletising

Labelling and printing at the end of the line

Complete this machine with automatic label application and printing systems to identify the product, ensure traceability and optimise logistics at the end of the line. They integrate into new or existing lines.

Label applicators

A compact, versatile format that can be installed at different points of the process, with high accuracy and connection to the plant control system and production management platforms.

Thermal transfer and inkjet

Variable information printed directly on the pack or label: thermal transfer (TTO, ribbon) for flexible film with high resolution, and non-contact inkjet for cardboard cases, pre-made bags and rigid packs such as tubs.

Print & apply

Prints the variable information on the label in real time and applies it to the pack automatically in a single process, with maximum accuracy and traceability.

Which packs

Cardboard cases (RSC, wrap-around or display)
Trays
Flow packs
Doypacks
Bags
Jars and tubs
Bottles
Pallets

Why integrate it

Modular, configurable design
High label placement accuracy
Easy integration into existing lines
Intuitive HMI programming
Adaptation to different production speeds

We choose the marking technology for the pack, the printing surface and the production requirements, and combine it with quality control, case packing, palletising and the rest of a turnkey packaging line.

Contact form

Is this the right machine for your product?

Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.

Contact form Call us Send an email WhatsApp

Frequently asked questions

What does the TRC shrink wrapper do?

It forms a bag around the product from a reel of film, closes it by heat sealing and passes it through a heat tunnel that shrinks the film with hot air, for a tight, professional finish.

How fast is it?

The form-fill-seal wrapper runs up to 35 pieces per minute and the heat tunnel 30 to 50 pieces per minute.

What product size does it take?

Up to 600 × 400 mm and 10 to 100 mm high, or 520 × 310 × 50 mm, depending on the model. For other sizes, ask our technical team.

How is it controlled?

With a Siemens or Omron PLC and a built-in digital screen for speed and temperature settings. Film detection sensors follow the process and flag faults.

What installation does it need?

A 220/380 V, 50/60 Hz 3-phase supply and 6 kW total power. The sealer measures 1,650 × 900 × 1,550 mm (300 kg) and the tunnel 2,000 × 780 × 1,625 mm (700 kg). It works between 10 and 30 °C and at 30–70 % humidity.

How is it different from the TR shrink tunnel?

The TRC includes the form-fill-seal wrapper: it forms and seals the bag from a reel and then shrinks it. The TR shrink tunnel only shrinks trays that arrive already wrapped in film.
