3- or 4-side seal bag
170–430 mm wide
Large-format flat 4-side seal bag.
Horizontal packaging machinesHigh-speed range

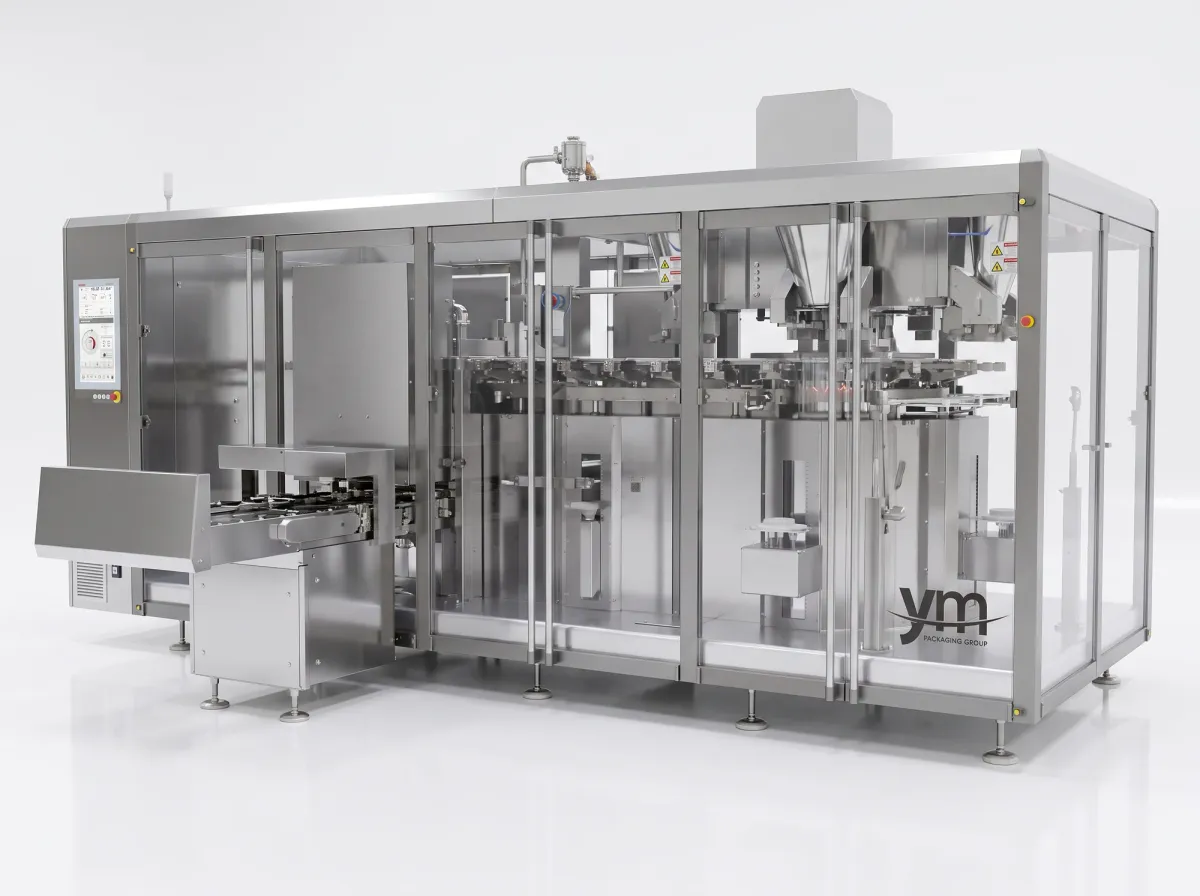

EPX 430 H horizontal packaging machine
The EPX 430 H horizontal packaging machine is the premade pouch machine for wide formats: 4-side seal bags and doypacks from 170 to 430 mm wide and up to 800 mm high. Its tracking filling module fills faster and more steadily, with no time limit per bag.
- bags/min
- 20–50
- bag width
- 170–430 mm
- max. height
- 800 mm
- power
- 7.5 kW
Why choose it
01
Tracking fill
Several filling stations: 4.5 times more filling time than a conventional machine, faster and steadier.
02
Wide format
Bag widths from 165–170 mm to 430 mm on the same machine.
03
Ideal for 4-side seal bags
An economical, leak-tight and uniform flat bag, easy to case pack, with an easy-open notch and suited to high speed.
04
Servo on every axis
Each axis moves only when needed, which cuts energy use. The screen shows voltage, current and air consumption in real time.
05
Space well used
Rotary chain structure that also fills on the return run: more stations in fewer metres.
06
Hygienic design
Sealed drives, with no exposed screws or air tubes; the jaw Teflon and the belts come off without tools.
What it can pack
- Solids and granules
- Liquids
- Powder
- Solid + liquid
Pack formats
How it works
Bag loading
Servo-driven feeding of large bags.
Opening
Vacuum opening with a quick-change filter.
Filling
Tracking fill from a weigher or other dosing unit, with bottom vibration.
Sealing and outfeed
Self-adjusting jaws and bag outfeed.
Technical specifications
Bag and formats
| Minimum bag size | 170 × 300 × (25 × 2) mm (width × height × gusset) |
|---|---|
| Maximum bag size | 430 × 800 × (75 × 2) mm |
| Bag types | 4-side seal, 3-side seal, doypack, zipper |
| Products | Solids, liquids, solid + liquid and powder |
Performance
| Speed | 20–50 bags/min (depending on product) |
|---|---|
| Motion type | Intermittent, tracking fill |
Power and consumption
| Power supply | AC 380 V · 50/60 Hz |
|---|---|
| Power | 7.5 kW |
| Air consumption | 0.6–1.5 m³/min |
| Noise level | < 80 dB |
Machine
| Dimensions | 5,212 × 2,000 × 2,150 mm (length × width × height) |
|---|---|
| Maximum dimensions | 5,304 × 5,063 × 2,600 mm |
Modules and options
Bag bottom vibration
A servo vibrates the bag bottom during filling: the product settles, the bag is fuller and the weight is more consistent.
Vacuum with removable filter
The vacuum system has a quick-change filter: maintenance is simpler.
Bag position and height check
Detects the position and height of every bag in line to ensure correct sealing and finish.
Servo-driven bag feeding
Several servo motors feed the bags at high speed, whatever the bag type and material.
Self-adjusting jaws and grippers
The sealing jaws and grippers position themselves automatically at every format change.
Weigher integration
Connects to multihead weighers, linear weighers and other dosing units, with quick mounting and easy removal for cleaning.
Hygienic design
Surfaces with no exposed screws or air tubes and fewer corners where dirt can build up: easier to clean.
Products and sectors
Product types
Sectors
Complete line
The machine integrates with the rest of the line: dosing, quality control and end of line.
- DosingMultihead weigher
- This machineEPX 430 H
- Weight controlCheckweigher
- Quality controlMetal detector
- End of lineCase packing and palletising
Frequently asked questions
What bag sizes does the EPX 430 H handle?
From 170 × 300 mm with a 25 + 25 mm gusset to 430 × 800 mm with a 75 + 75 mm gusset.
What speed does it reach?
Between 20 and 50 bags per minute, depending on the product and the bag size.
Why choose a 4-side seal bag?
It is an economical, leak-tight flat bag, very uniform for packing several units in a case, with an easy-open notch and suited to high speed.
What is the difference from the EPX 430 L?
The EPX 430 L handles bags up to 1 m high and offers in-line nitrogen injection.
What is the standard-range alternative?
The EPJ, for bags up to 310 mm wide.
Is this the right machine for your product?
Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.
- Installation and commissioning
- Operator training
- Remote support
- Spare parts and maintenance
Variants and related models
Models of the same family and their counterpart in the other range.
Variant · continuous with weighing
High-speed range

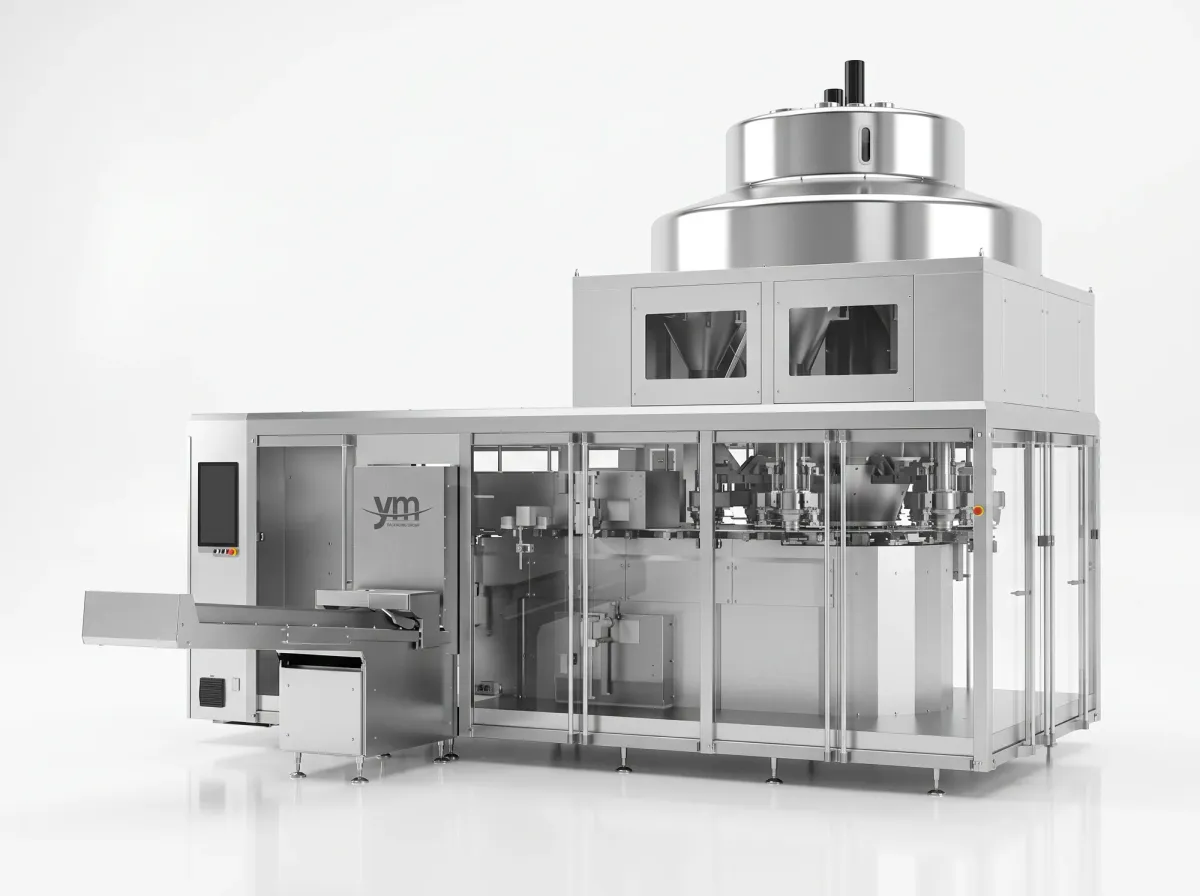

EPX 430 C
EPX 430 C horizontal packaging machine
- bags/min
- 20–60
- in line
- Weighing
- bag width
- 170–430 mm
See machine
Variant · up to 1 m high
High-speed range

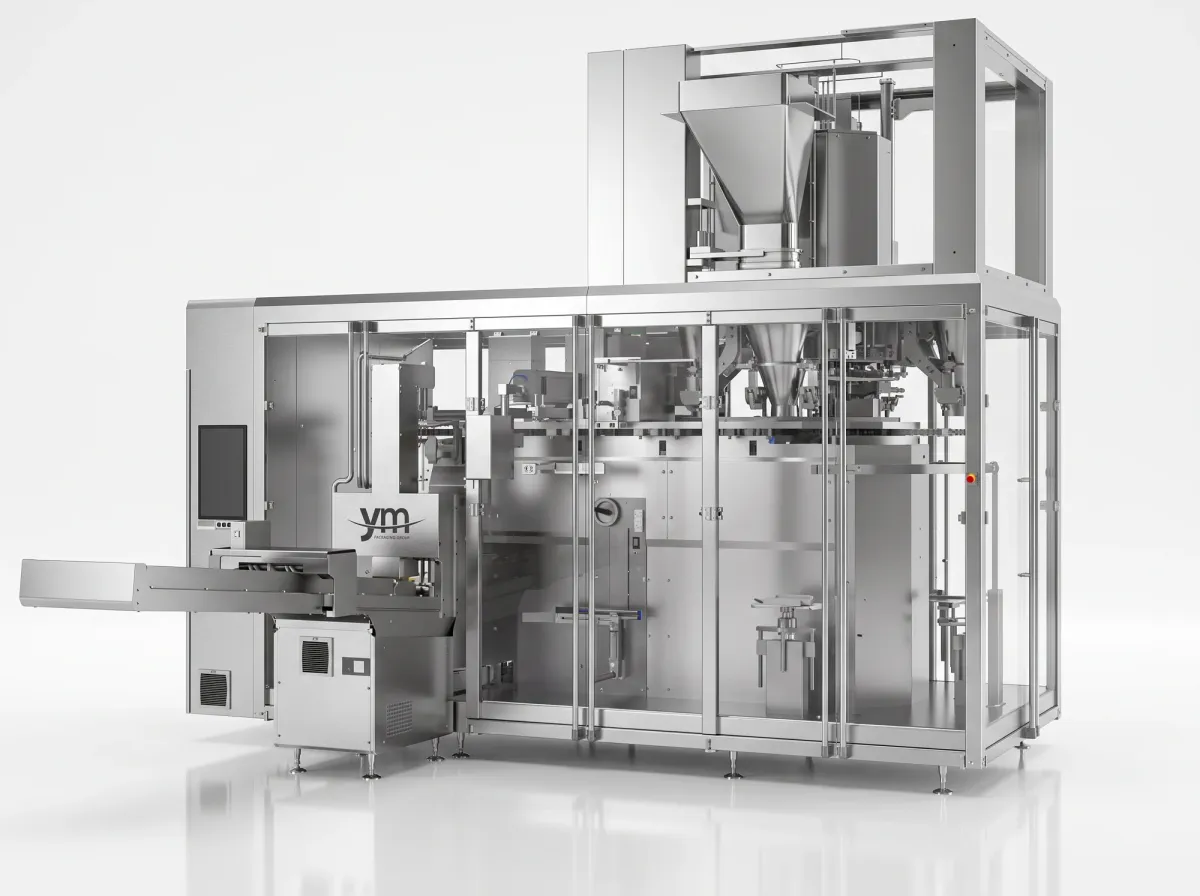

EPX 430 L
EPX 430 L horizontal packaging machine
- bags/min
- 10–40
- bag height
- 1 m
- bag width
- 170–430 mm
See machine
Counterpart · standard range
Standard range

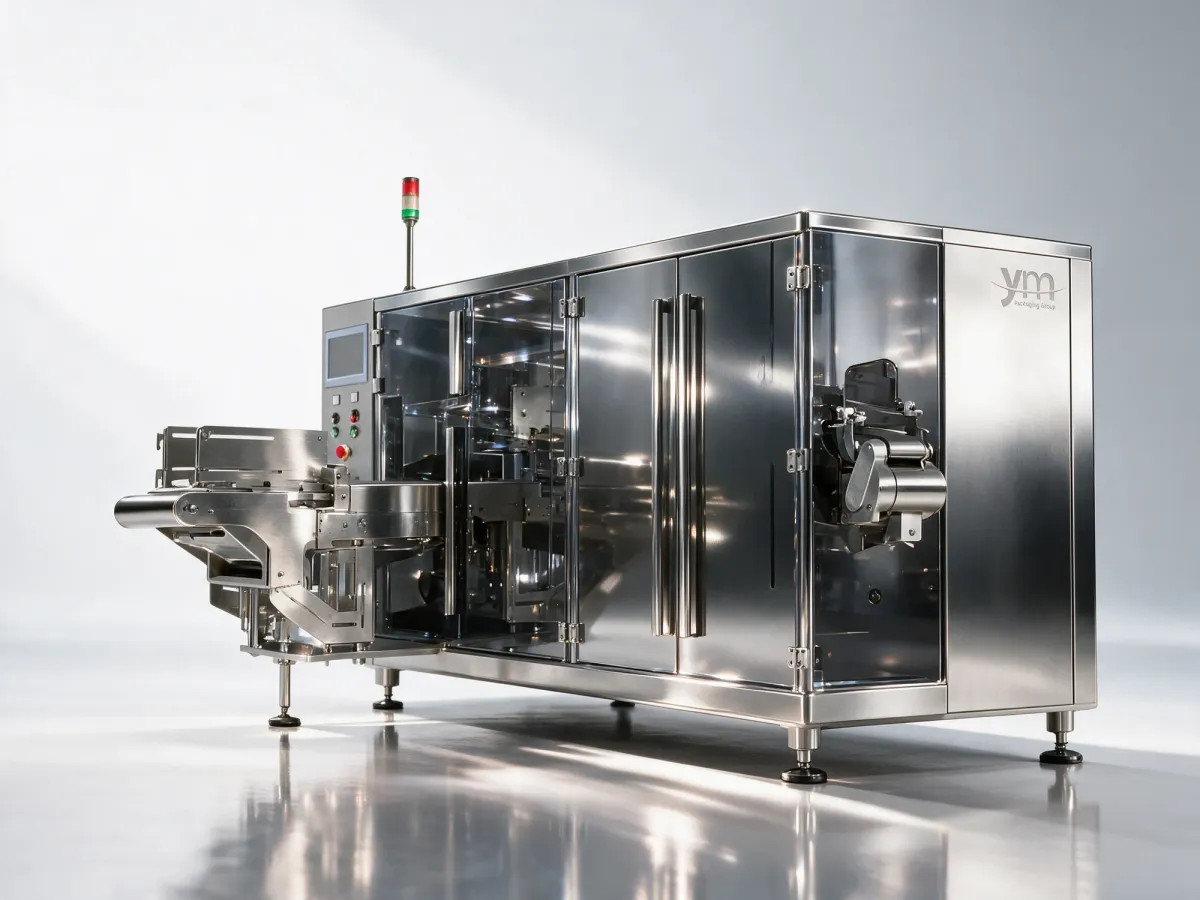

EPJ 210 · EPJ 260 · EPJ 310
