Doypack
100–205 mm wide
Stand-up premade pouch.
Horizontal packaging machinesHigh-speed range

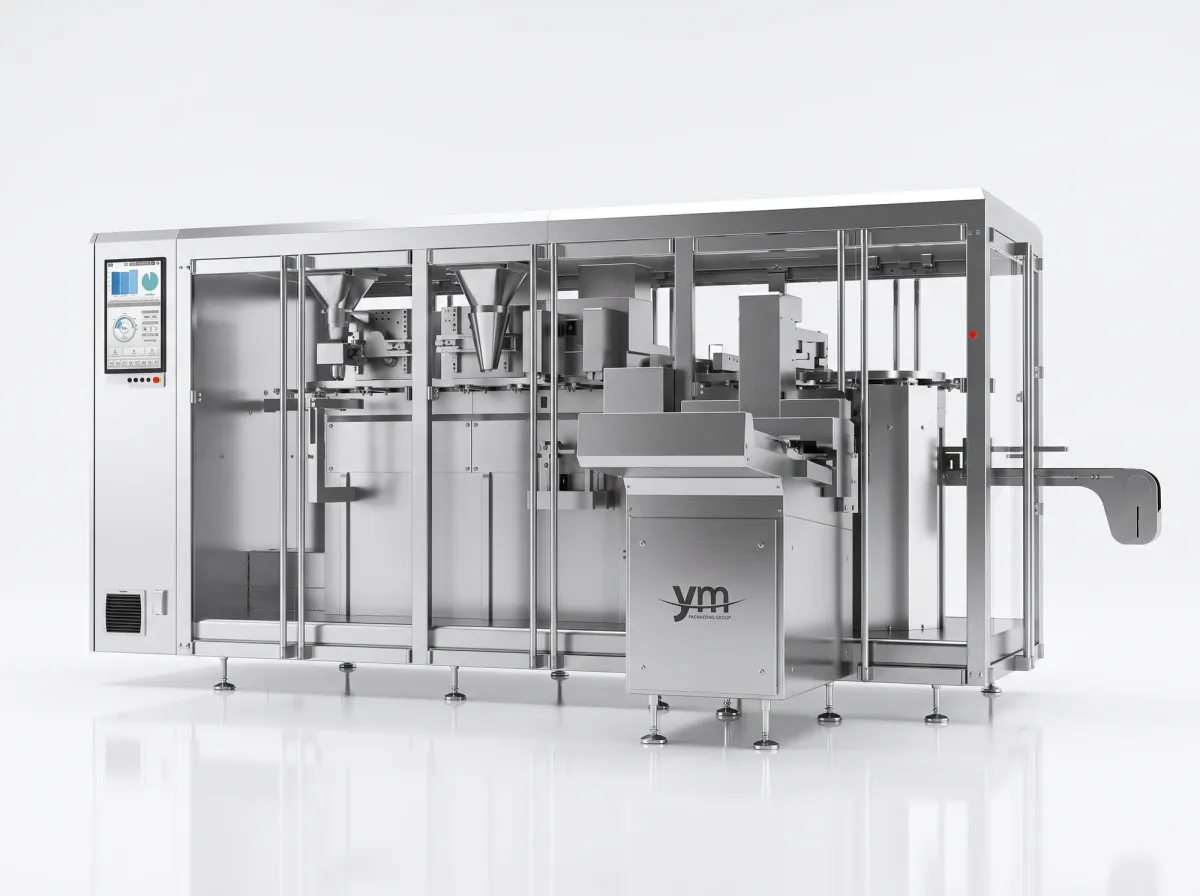

EPX 210 horizontal packaging machine
The EPX 210 horizontal packaging machine fills and seals premade pouches at 80–120 bags per minute in a length of just 4.3 metres. A 21-inch industrial screen, one-touch format changes and all the quality controls of the high-speed range in a compact machine.
- bags/min
- 80–120
- length
- 4.3 m
- bag width
- 100–205 mm
- screen
- 21"
Why choose it
01
High output in little space
Only 4.3 m long for 80–120 bags per minute: ideal where floor space is limited.
02
21" screen and one-touch changeover
21-inch industrial HMI and format changes from the screen.
03
Servo on every axis
Each axis moves only when needed, which cuts energy use. The screen shows voltage, current and air consumption in real time.
04
Recipe-based format changes
Each recipe stores the settings and shows which parts to change; the time of every changeover is logged so it can keep improving.
05
Quality and OEE at a glance
In-line detection of bag loading, height, coding and weight; the HMI shows OEE and production data by user.
06
Hygienic design
Sealed drives, with no exposed screws or air tubes; the jaw Teflon and the belts come off without tools.
What it can pack
- Solids and granules
- Liquids
- Powder
- Solid + liquid
Pack formats
How it works
Bag loading
Servo-driven bag feeding from the magazine.
Opening
Vacuum bag opening; the vacuum filter can be cleaned in seconds.
Filling
Tracking hopper that holds the bag by all four corners, with bottom vibration.
Sealing
Multiple sealing stations for a strong, well-finished seal.
Inspection and outfeed
Non-conforming bags are rejected before outfeed.
Technical specifications
Bag and formats
| Minimum bag size | 100 × 140 × (25 × 2) mm (width × height × gusset) |
|---|---|
| Maximum bag size | 205 × 340 × (50 × 2) mm |
| Bag types | Doypack, zipper, 3- and 4-side seal, special shape |
| Products | Solids, liquids, solid + liquid and powder |
Performance
| Speed | 80–120 bags/min (depending on product) |
|---|---|
| Motion type | Intermittent, duplex |
| Screen | 21" industrial HMI |
Power and consumption
| Power supply | AC 380 V · 50/60 Hz |
|---|---|
| Power | 6 kW |
| Air consumption | 0.6–1.5 m³/min |
| Noise level | < 80 dB |
Machine
| Dimensions | 4,288 × 1,400 × 2,152 mm (length × width × height) |
|---|---|
| Maximum dimensions | 4,380 × 3,020 × 2,150 mm |
Modules and options
Bag bottom vibration
A servo vibrates the bag bottom during filling: the product settles, the bag is fuller and the weight is more consistent.
Four-corner gripping hopper
The hopper holds the bag by all four corners for accurate filling.
Weigher integration
Connects to multihead weighers, linear weighers and other dosing units, with quick mounting and easy removal for cleaning.
Bag coding
Accepts laser, inkjet or thermal transfer coders, with quick-adjust mounts.
Servo-driven bag feeding
Several servo motors feed the bags at high speed, whatever the bag type and material.
High-speed zipper opening
Opens the zipper of each premade pouch without reducing the machine's output.
Vacuum with removable filter
The vacuum system has a quick-change filter: maintenance is simpler.
Multiple sealing stations
Reinforced sealing and flattening for a strong seal and a shelf-ready finish.
Rejection of non-conforming bags
A station removes bags that fail the checks: everything that leaves the machine is conforming product.
Bag position and height check
Detects the position and height of every bag in line to ensure correct sealing and finish.
Tracking filling hopper
The hopper travels with the bag over several stations and gives more than four times the filling time: higher speed, even with bulky products.
Products and sectors
Product types
Sectors
Complete line
The machine integrates with the rest of the line: dosing, quality control and end of line.
- DosingMultihead weigher
- This machineEPX 210
- Weight controlCheckweigher
- Quality controlMetal detector
- End of lineCase packing and palletising
Frequently asked questions
What speed does the EPX 210 reach?
Between 80 and 120 bags per minute, depending on the product and the bag size.
How much space does it take up?
4,288 × 1,400 mm footprint and 2,152 mm high.
How does it differ from the EPY?
The EPY is our standard-range premade pouch machine (EPY 205: 40–70 bags/min). The EPX 210 doubles the output and adds servo on every axis, a 21" screen, OEE and rejection of non-conforming bags.
What bag sizes does it handle?
From 100 × 140 mm with a 25 + 25 mm gusset to 205 × 340 mm with a 50 + 50 mm gusset.
Does it work with zipper bags?
Yes, with the optional high-speed zipper opener.
Is this the right machine for your product?
Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.
- Installation and commissioning
- Operator training
- Remote support
- Spare parts and maintenance
Variants and related models
Models of the same family and their counterpart in the other range.
Variant · continuous motion
High-speed range
EPX 320 C

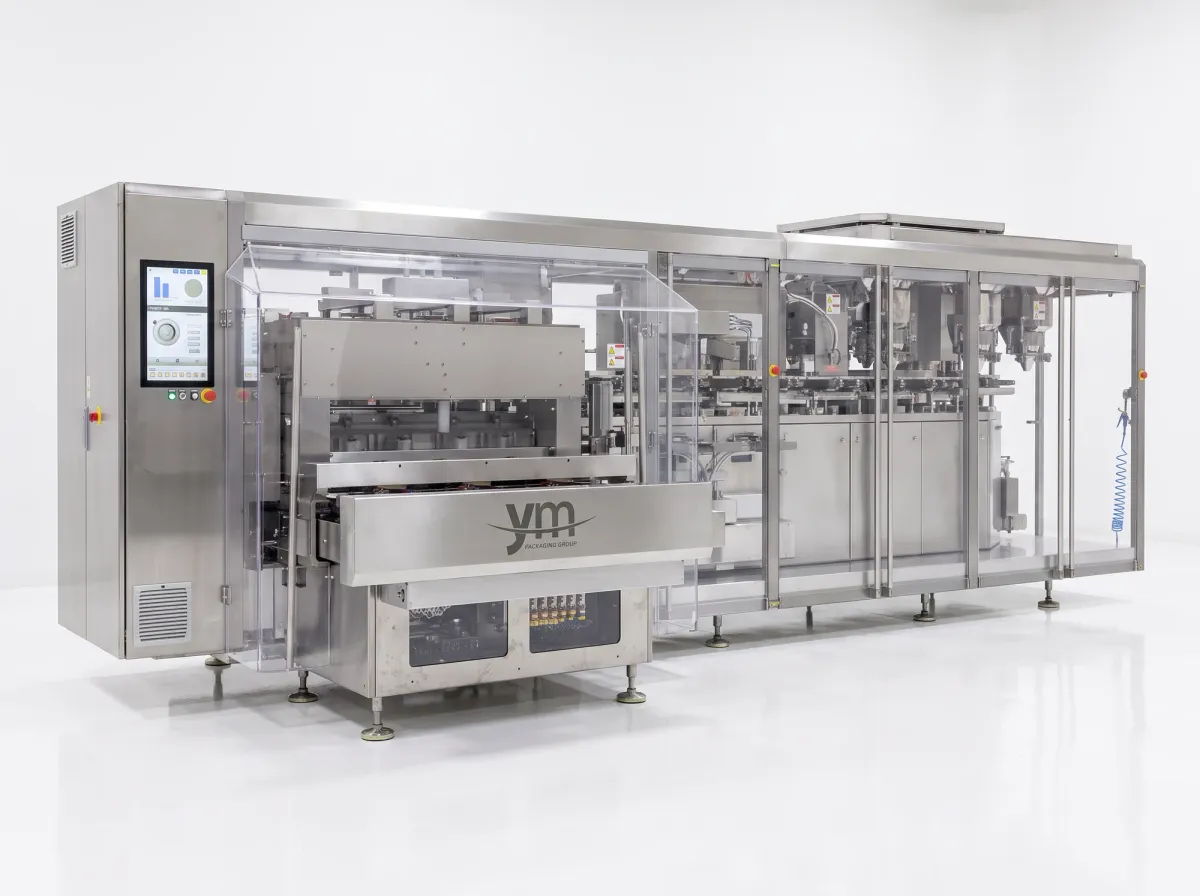

EPX 320 C horizontal packaging machine
- bags/min
- 60–100
- motion
- Continuous
- bag width
- 130–320 mm
See machine

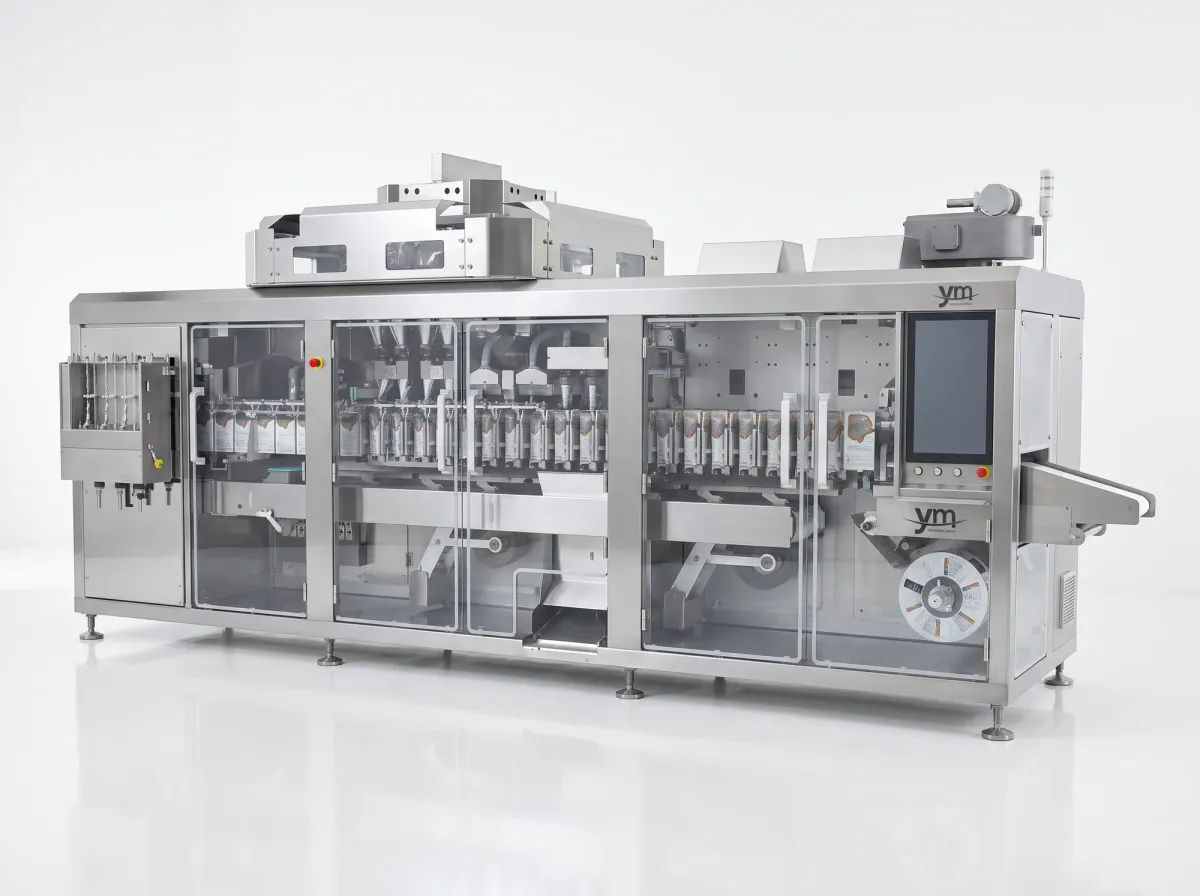

Variant · small bags
High-speed range
Counterpart · standard range
Standard range
EPY 205 · EPY 315

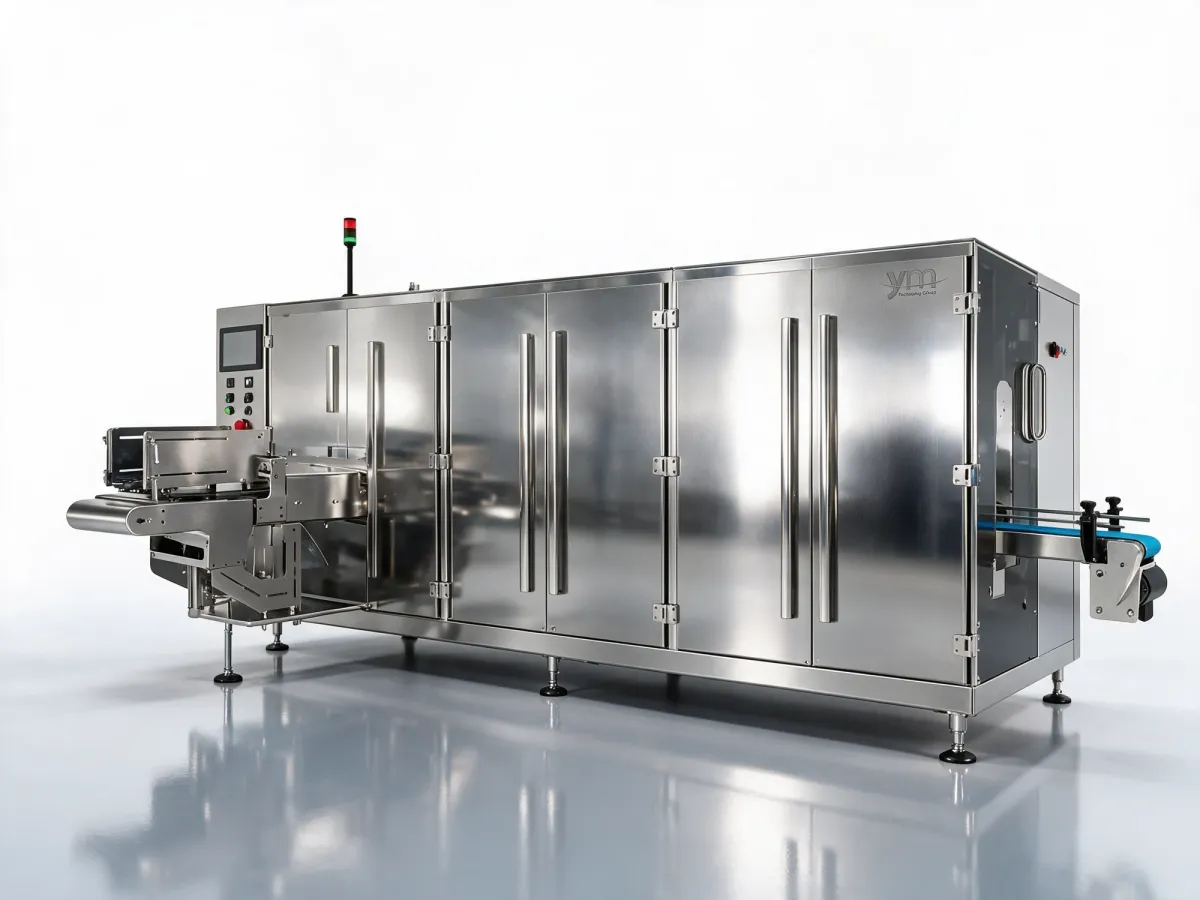

EPY horizontal packaging machine
