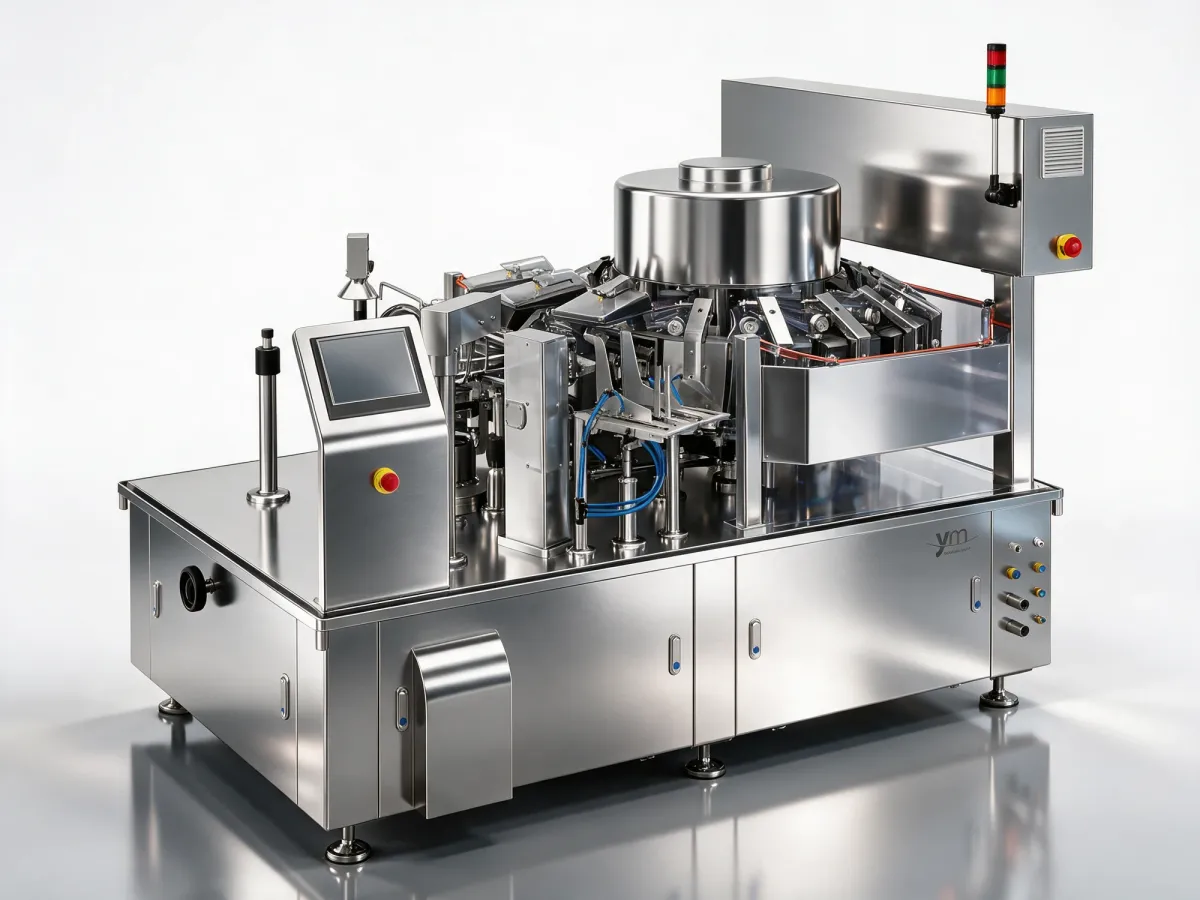

EPRV rotary vacuum packaging machine
The EPRV rotary vacuum packaging machine feeds, opens, fills and vacuum-seals premade pouches using rotary vacuum chambers, on an 8-station carousel, at up to 120 bags per minute. Built in 304 stainless steel, it handles doypacks, doypacks with zipper and 3-side or 4-side seal bags with liquid, powder, granular and solid products.
- bags/min
- up to 120
- work stations
- 8
- bag width
- 55–160 mm
- air consumption
- 0.8 m³/min
Why choose it
01
Rotary vacuum packaging
Vacuum method with rotary chambers that close the premade pouch without air, built into the 8-station carousel.
02
Up to 120 bags per minute
The EPRV 100 reaches 120 bags per minute, the EPRV 140 90 and the EPRV 160 80, depending on the product and the bag size.
03
Any product, any dosing system
Compatible with different types of dosing systems for powder, granular, solid and liquid products.
04
Premade formats
Doypack, doypack with zipper and 3-side or 4-side seal bags, from 55 to 160 mm wide depending on the model.
05
Siemens control
Siemens or Flexem touch screen, Siemens PLC and drive, FESTO and/or SMC pneumatics. All parameters are set from the screen.
06
Stainless steel and safety
Structure and frame in 304 stainless steel, status light tower, safety devices on doors and openings, no bag, no product function and CE regulations.
What it can pack
- Solids and granules
- Liquids
- Powder
- Solid + liquid
Pack formats
How it works
Infeed
The magazine feeds the premade pouches to the 8-station carousel, which carries them from one operation to the next.
Opening
The bag is opened at the opening station. If there is no bag, no product is dosed (no bag, no product).
Filling
The attached dosing unit (for powder, granules, solids or liquids) discharges the product into the open bag.
Vacuum
The rotary chambers close over the bag and the vacuum pump draws out the air before sealing.
Closing
The bag is vacuum-sealed. All parameters are controlled by the Siemens PLC from the touch screen.
Outfeed
The finished bag leaves the carousel towards the metal detector, weight control and case packing.
Technical specifications
Models
| EPRV 100 | EPRV 140 | EPRV 160 | |
|---|---|---|---|
| Bag width | 55–110 mm | 60–140 mm | 80–160 mm |
| Bag length | 60–190 mm | 100–290 mm | 60–225 mm |
| Speed | 120 bags/min | 90 bags/min | 80 bags/min |
| Machine dimensions | 2500 × 1500 × 1600 mm | 2500 × 1500 × 1600 mm | 2500 × 1500 × 2000 mm |
Performance
| Work stations | 8 |
|---|---|
| Speed | Up to 120 bags/min, depending on product and bag size |
| Vacuum | Rotary chambers |
| Formats | Doypack, doypack with zipper, 3-side or 4-side seal bags |
Power and consumption
| Power supply | Three-phase AC · 400 V · 50 Hz |
|---|---|
| Power | 6 kW (depending on model) |
| Air consumption | 0.8 m³/min |
| Vacuum pump | 2.7 kW |
Control and components
| Screen | Siemens / Flexem touch screen |
|---|---|
| PLC | Siemens |
| Drive | Siemens |
| Pneumatics | FESTO and/or SMC |
Machine
| Dimensions | 2500 × 1500 × 1600 mm |
|---|---|
| Weight | Approx. 3,000 kg |
| Frame and structure | 304 stainless steel |
| Safety | Light tower, safety devices on doors and openings, CE regulations |
Products and sectors
Product types
Sectors
Complete line
The machine integrates with the rest of the line: dosing, quality control and end of line.
- DosingMultihead weigher
- This machineEPRV 100 · EPRV 140 · EPRV 160
- Quality controlMetal detector
- Weight controlCheckweigher
- End of lineCase packing and palletising
Frequently asked questions
What speed does the EPRV rotary packaging machine reach?
Up to 120 bags per minute on the EPRV 100, 90 on the EPRV 140 and 80 on the EPRV 160, depending on the product and the bag size.
How does it differ from the EPR rotary packaging machine?
The EPRV vacuum-packs using rotary chambers and is faster (up to 120 bags per minute), with bags from 55 to 160 mm wide. The EPR packs without vacuum, at up to 60 bags per minute, with bags up to 350 mm and fills of up to 2,500 g.
How does it create the vacuum?
With rotary chambers built into the 8-station carousel and a 2.7 kW vacuum pump that draws the air out of the bag before sealing.
What premade pouch formats does it handle?
Doypack, doypack with zipper and 3-side or 4-side seal bags, with widths from 55 to 160 mm and lengths from 60 to 290 mm depending on the model.
What products can it pack?
Liquids, powder, granules and solids. It combines with different types of dosing systems depending on the product.
What is the difference between the EPRV 100, EPRV 140 and EPRV 160?
The bag size and the speed. The EPRV 100 handles widths from 55 to 110 mm at 120 bags per minute, the EPRV 140 from 60 to 140 mm at 90 and the EPRV 160 from 80 to 160 mm at 80.
What connections does it need?
A three-phase 400 V, 50 Hz power supply, with 6 kW of power depending on the model, and compressed air with a consumption of 0.8 m³/min.
Is this the right machine for your product?
Tell us what you pack, in which format and at what speed. An engineer will reply with a proposal.
- Installation and commissioning
- Operator training
- Remote support
- Spare parts and maintenance
Variants and related models
Models of the same family and their counterpart in the other range.
Variant · without vacuum
Standard range
EPR 240 · EPR 300 · EPR 350

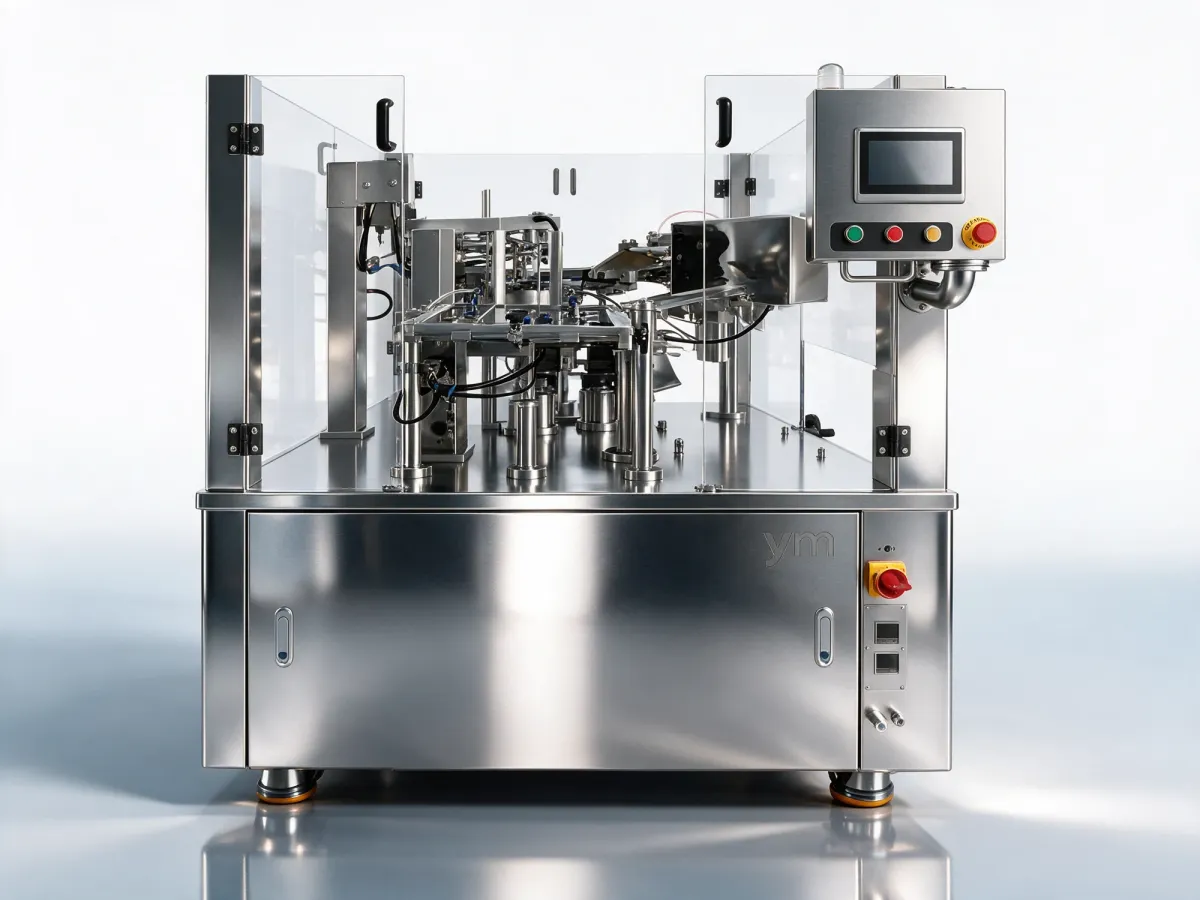

EPR rotary packaging machine
