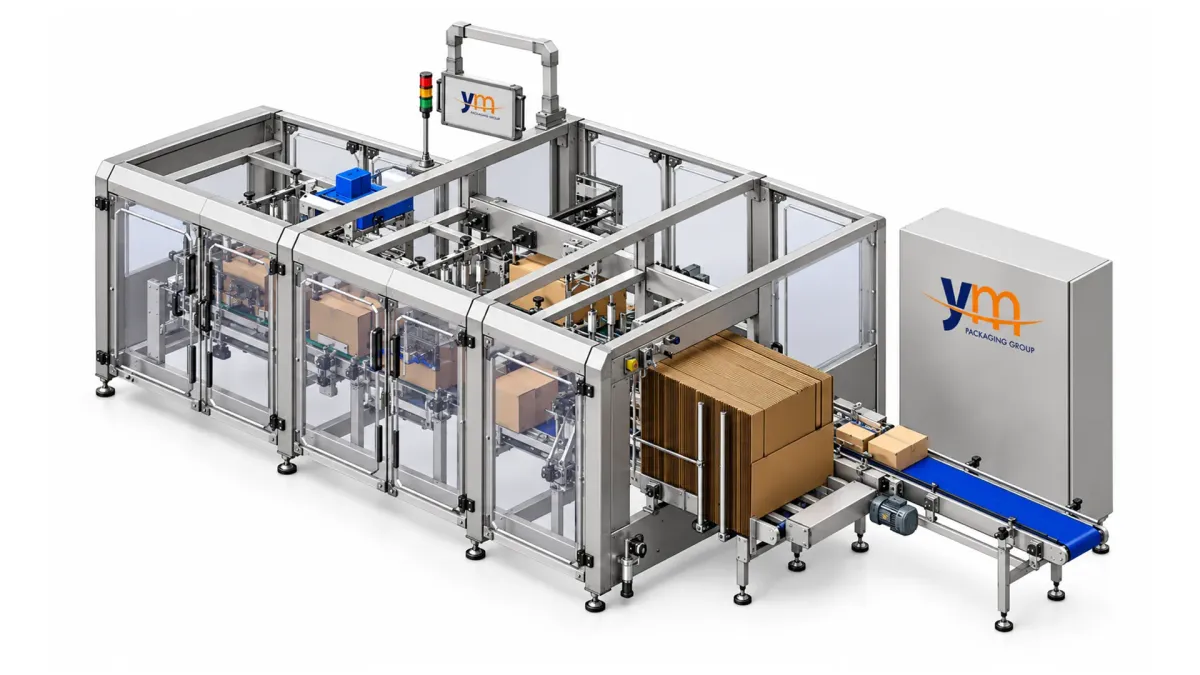

EPCP-15BOX FORMERAND WRAP-AROUND CASE PACKER
The industrial packaging solution for a production line that is robust

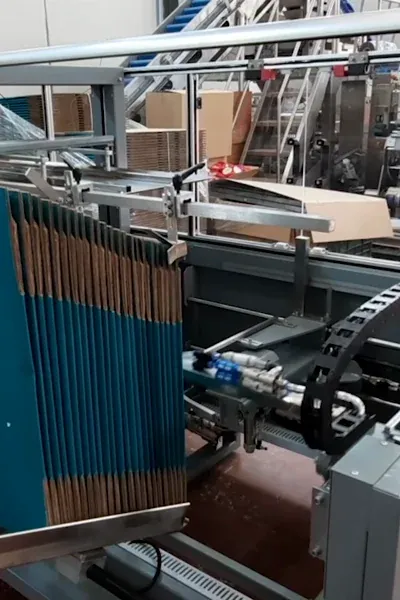

Low-height blank loader, easy for the operator. Picks and erects the case with suction cups, with quick format changes guided by digital counters.
◄ TAP THE IMAGE TO WATCH THE VIDEO

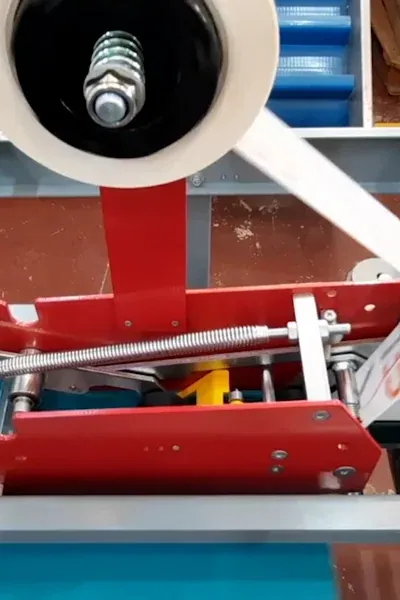

90° case turning and closing with Nordson ProBlue hot-melt glue or adhesive tape.
◄ TAP THE IMAGE TO WATCH THE VIDEO

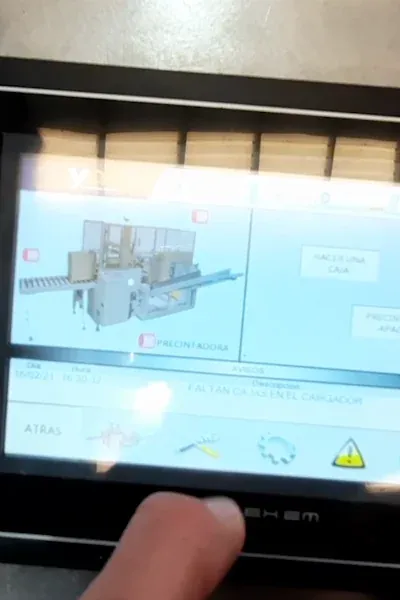

Siemens or Omron PLC and a 10-inch colour touch screen to run and adjust the machine.
◄ TAP THE IMAGE TO WATCH THE VIDEO

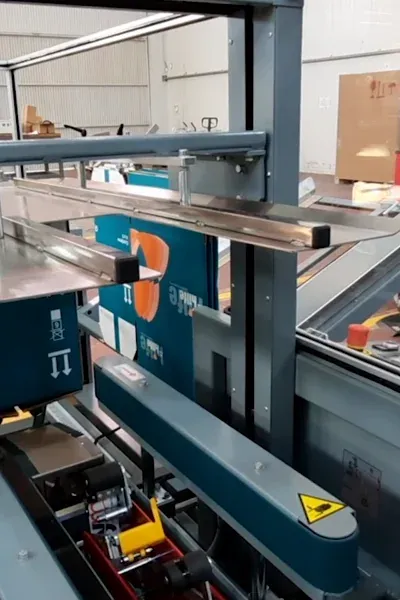

Simple single-layer transfer, mechanical or servo-driven lifting, drop stacker or pick & pack gripper, depending on the product.
◄ TAP THE IMAGE TO WATCH THE VIDEO
EPCP-15 IN ACTION
See the precision and performance of the machine in continuous production

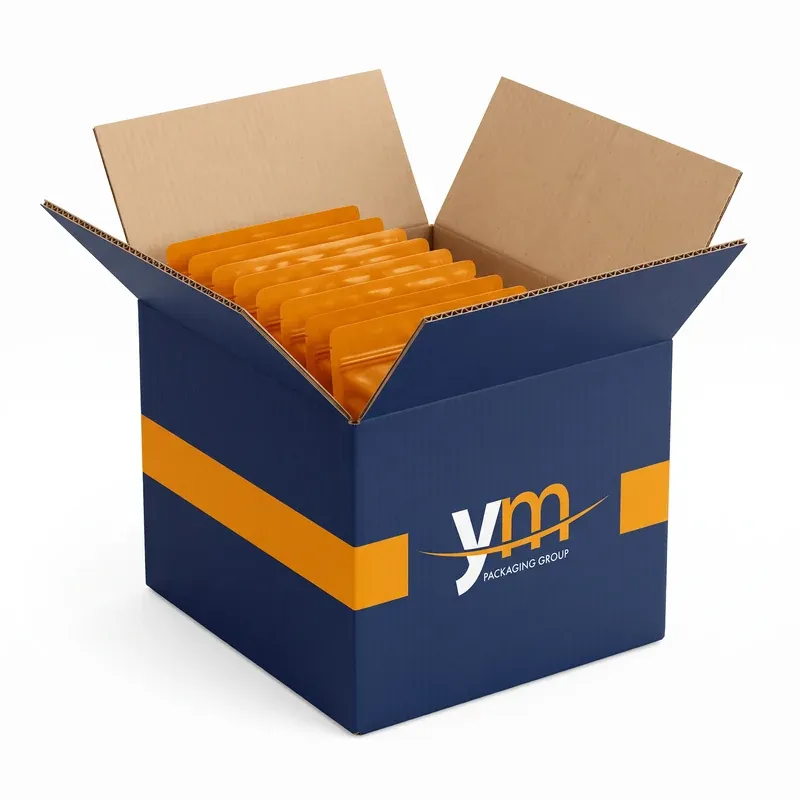

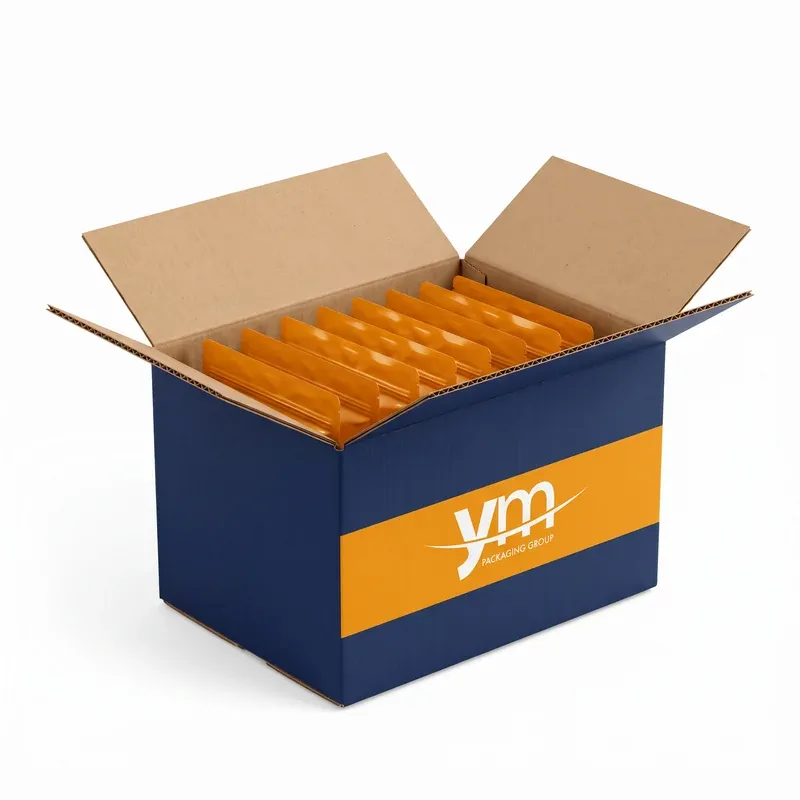

BOX TYPES

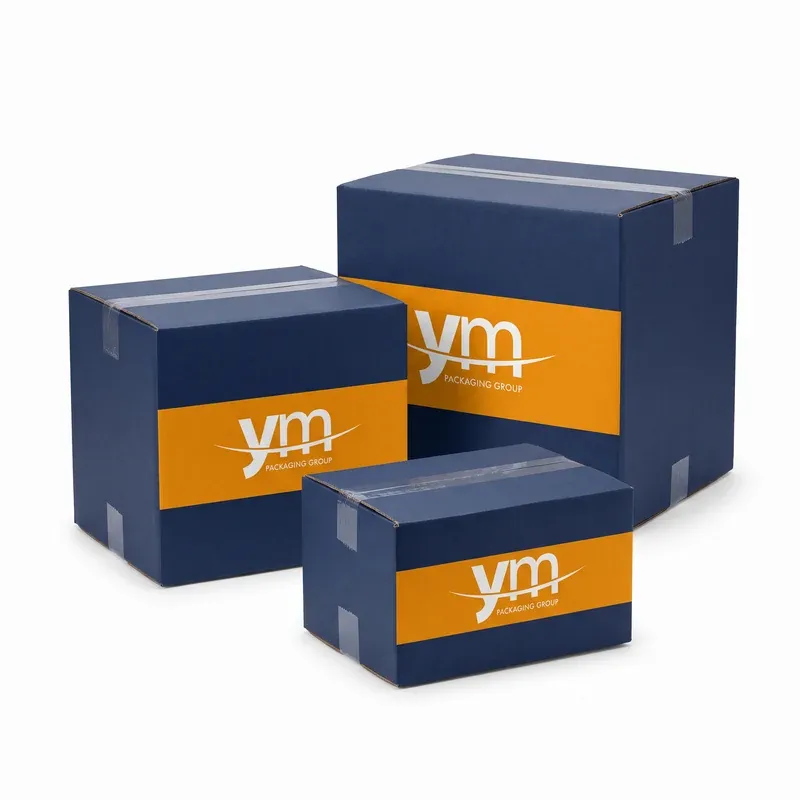

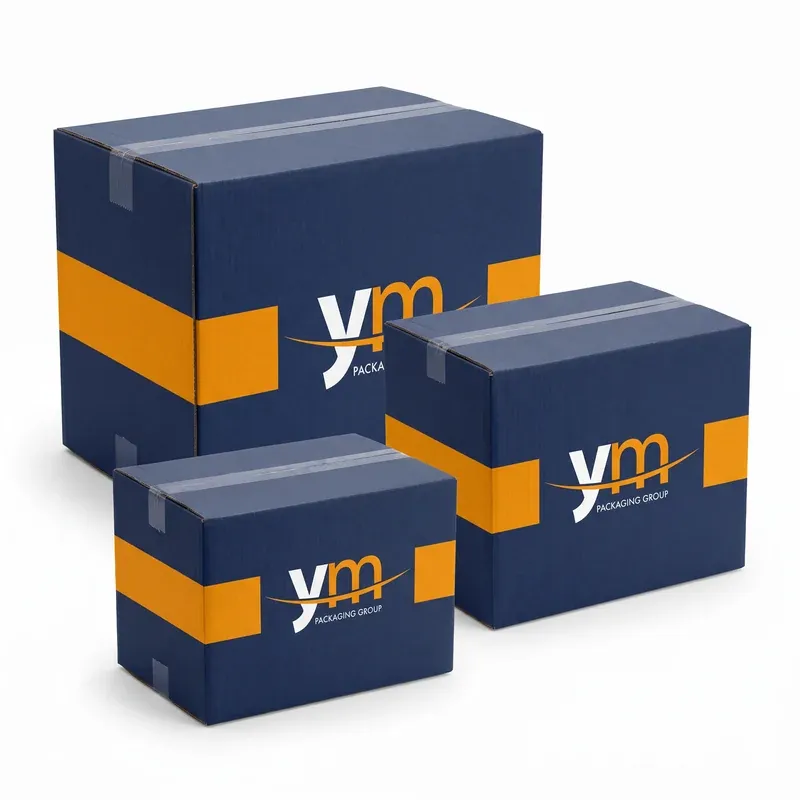

Speed of up to 15 boxes/minute, with cases up to 500 mm long and 400 mm wide.
Tap the boxes to see more details.
KEY COMPONENTS
We use top-tier brands for maximum reliability
| Production Speed | Up to 15 boxes/minute |
|---|---|
| Box Size (Max.) | 500 mm (L) x 400 mm (W) x 400 mm (H) |
| Box Size (Min.) | 200 mm (L) x 180 mm (W) x 100 mm (H) |

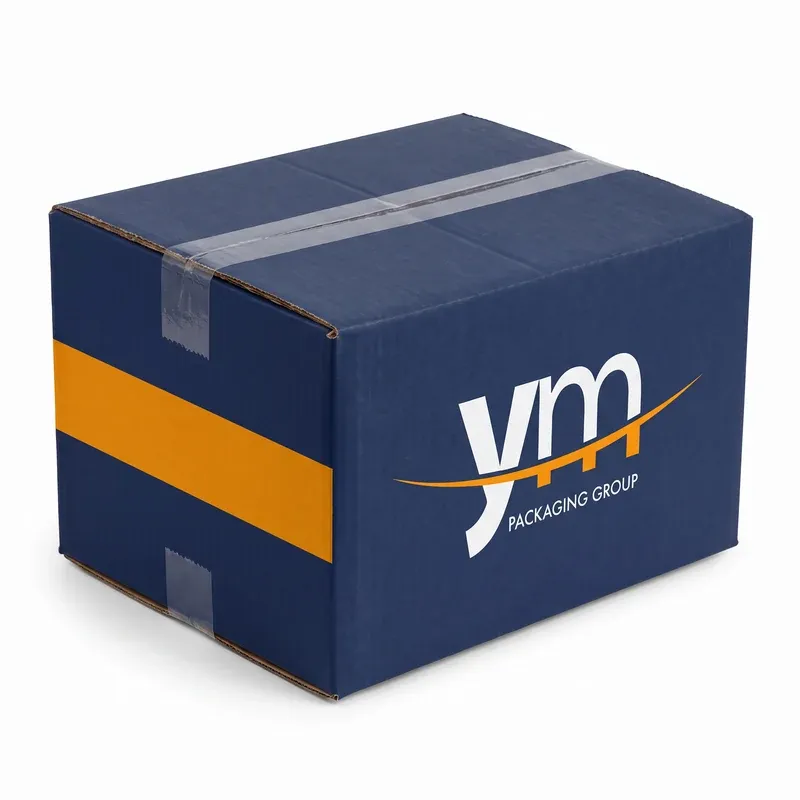

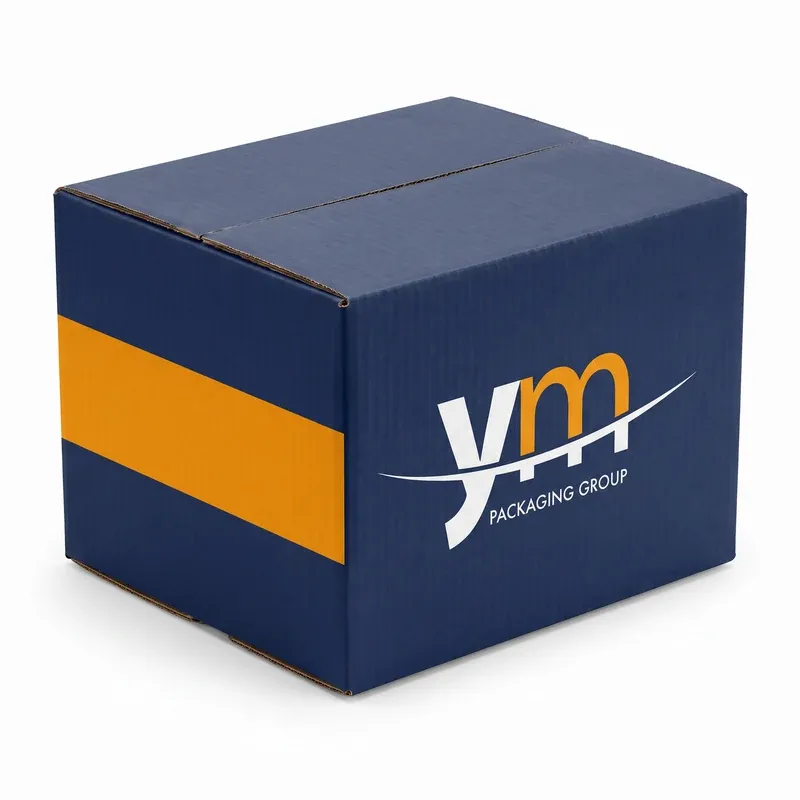

| Closing / Sealing | Nordson ProBlue hot-melt glue or adhesive tape |

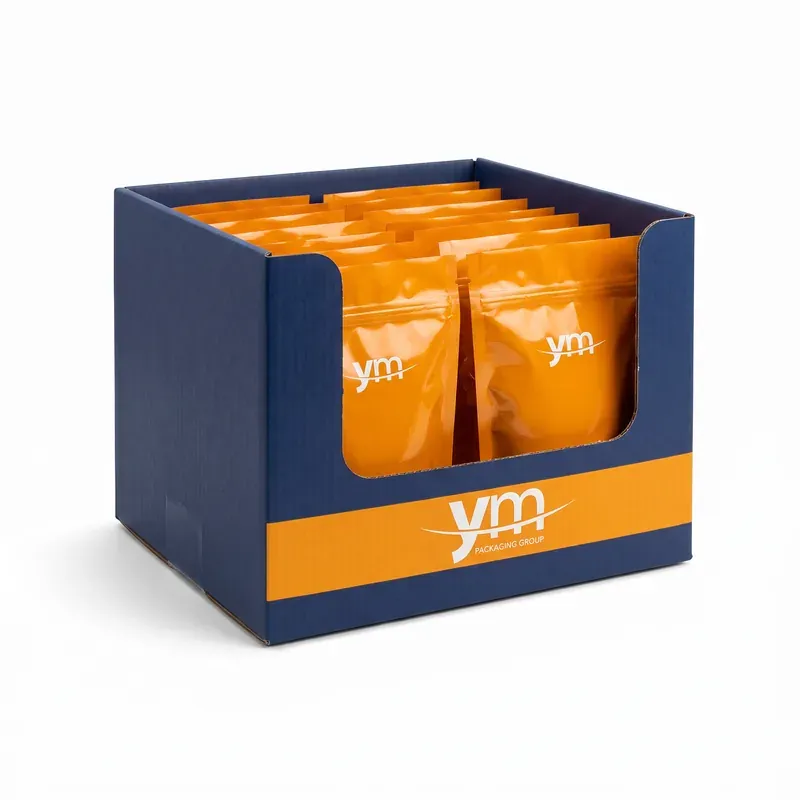

| Case types | Wrap-around and shelf-ready display tray |
| Case erecting | Suction-cup picking and erecting, format change guided by digital counters |
| Product infeed | Single-layer transfer, mechanical or servo lifting, drop stacker or pick & pack gripper |
| Control | Siemens or Omron PLC, 10-inch colour touch screen |
| Power Supply | 380 / 460 VAC, 3-phase, 50/60 Hz |
| Power Required | 4 HP (tape sealing) / 8 HP (hot-melt) |
| Air Consumption | 5-6 bar / 80 psi (0.6 m³/min, dry and filtered) |
| Overall Dimensions (L x W x H) | 5,450 mm x 2,450 mm x 2,000 mm |
| Total Weight | Approx. 2,000 kg |
FAQs
Quick answers to the most common technical and operational questions
What does the EPCP-15 wrap-around case packer do?
It picks, erects and closes wrap-around cases from flat cardboard blanks: it forms the case around the product, loads it and seals it with hot-melt glue or adhesive tape, at up to 15 cases per minute.
Which case types and sizes does it handle?
Wrap-around cases and shelf-ready display trays (open-front trays ready for the shelf). Length 200 to 500 mm, width 180 to 400 mm and height 100 to 400 mm. Other versions of the machine are available for larger or smaller cases.
Which products can it pack?
Pouches and doypacks, bottles, cans or cartons. Product infeed is adapted to each case: simple single-layer transfer, mechanical or servo-driven lifting, drop stacker or pick & pack gripper.
How is the case closed?
With hot-melt glue applied by a Nordson ProBlue unit, or with adhesive tape. Installed power is 4 HP with tape sealing and 8 HP with hot-melt.
Is the format changeover quick?
Yes. Cases are erected with a suction-cup system and the format change is quick, guided by digital counters, so switching from one case to another takes short stops.
Which controls does it use and how does it fit into the line?
Siemens or Omron PLC and a 10-inch colour touch screen. It sits at the end of the line, after the packaging machine, checkweigher or metal detector, and before palletising.
Why is it robust, compact, ergonomic and safe?
A robust frame built for continuous production, a compact footprint of 5,450 × 2,450 × 2,000 mm and a low-height blank loader that makes the operator's job easier.
What does it need to be installed?
380/460 VAC three-phase power, 50/60 Hz; compressed air at 5–6 bar (0.6 m³/min, dry and filtered), and a space of 5,450 × 2,450 × 2,000 mm. It weighs about 2,000 kg.
